Description:The RAA23014x and RAA23015x are 1CH step-down DC/DC converter, 7V to 28V input voltage range. Auto PFM mode makes devices low power operation at light load, so it makes a system lower power. The RAA23014x is suitable for battery backup system using lithium primary cell with built-in battery backup circuit.
Renesas provides a reference design guide for the RAA230152GSB#HA0, which includes recommended PCB layout and thermal management guidelines. It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and electromagnetic compatibility.
The RAA230152GSB#HA0 has built-in overcurrent protection and fault detection features. However, to implement these features, you need to use external components and programming. Renesas provides application notes and code examples to help you implement these features.
The recommended power-up sequence is to apply the power supply voltage (VCC) first, followed by the input voltage (VIN). For power-down, the sequence should be reversed. This ensures proper device operation and prevents damage.
To optimize the RAA230152GSB#HA0 for low-power consumption, you can use techniques such as dynamic voltage and frequency scaling, clock gating, and power gating. Renesas provides guidelines and tools to help you optimize power consumption.
The recommended settings for the internal oscillators and clock sources depend on the specific application and requirements. Renesas provides guidelines and recommendations in the datasheet and application notes.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RAA230152GSB#HA0 Overview

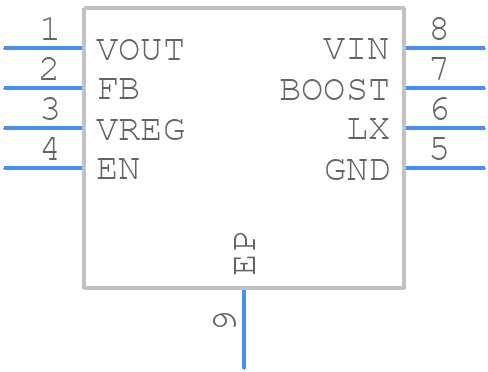

Use the download button to access the RAA230152GSB#HA0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RAA23,
or try a keyword search, such as Switching Regulator or Controllers
