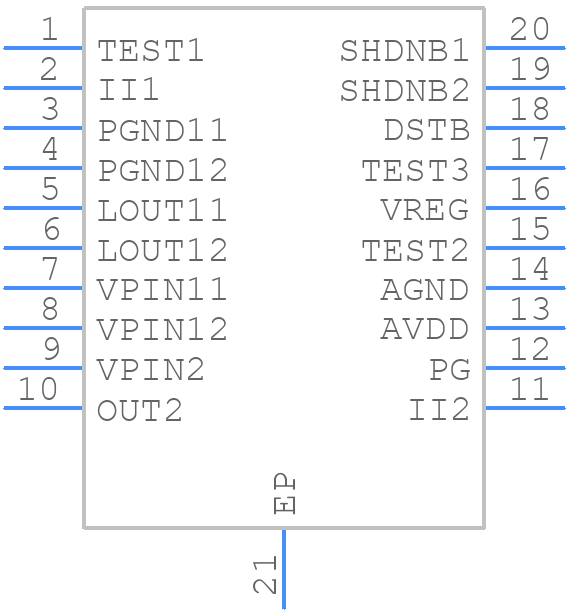

RAA230215GSB - Renesas Electronics

RAA230215GSB Details

• Manufacturer Part Number:

  RAA230215GSB

• Brand Name:

  Renesas

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  HTSSOP

• Package Description:

  HTSSOP-20

• Pin Count:

  20

• Manufacturer Package Code:

  PTSP0020JF-A20

• ECCN Code:

  5A002

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Additional Feature:

  ALSO HAS DUAL OUTPUT

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  3 V

• JESD-30 Code:

  R-PDSO-G20

• Length:

  6.5 mm

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  3 A

• Output Voltage-Max:

  4.4 V

• Output Voltage-Min:

  0.9 V

• Output Voltage-Nom:

  3.3 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTSOP

• Package Equivalence Code:

  SOP20,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Seated Height-Max:

  1.1 mm

• Supply Current-Max (Isup):

  0.002 mA

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  1000 kHz

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  4.4 mm
