RAA270000KFT#BA2 - Renesas Electronics

RAA270000KFT#BA2 Details

• Manufacturer Part Number:

  RAA270000KFT#BA2

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Active

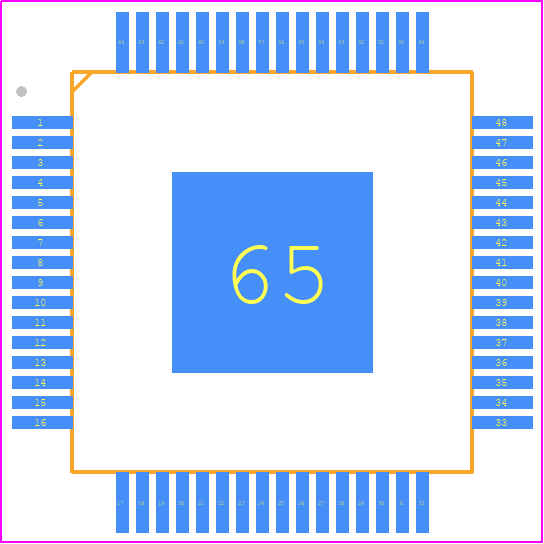

• Part Package Code:

  HTQFP

• Package Description:

  QFP-64

• Pin Count:

  64

• Manufacturer Package Code:

  PTQP0064KD

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2020-04-17

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  5

• Adjustable Threshold:

  NO

• Analog IC - Other Type:

  INTEGRATED POWER MANAGEMENT UNIT

• JESD-30 Code:

  S-PQFP-G64

• Length:

  10 mm

• Moisture Sensitivity Level:

  3

• Number of Channels:

  8

• Number of Functions:

  1

• Number of Terminals:

  64

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTFQFP

• Package Equivalence Code:

  QFP64,.47SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

• Seated Height-Max:

  1.2 mm

• Supply Current-Max (Isup):

  14 mA

• Supply Voltage-Max (Vsup):

  18.5 V

• Supply Voltage-Min (Vsup):

  6 V

• Supply Voltage-Nom (Vsup):

  12 V

• Surface Mount:

  YES

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Threshold Voltage-Nom:

  +3.7V

• Width:

  10 mm
