RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 1 oz copper thickness is recommended, and the copper area should be connected to a solid ground plane to reduce thermal resistance.
Yes, the RAC05-3.3SK is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications. However, it's essential to ensure proper mounting and screw torque to prevent damage or dislodging of the module.
To ensure reliability, RECOM recommends derating the module's output power by 2.5% per degree Celsius above 40°C. Additionally, ensure good airflow around the module, and consider using a heat sink or thermal interface material to reduce the thermal resistance.
RECOM recommends using a low-ESR ceramic capacitor with a value of 10-22 μF, rated for the input voltage range. The capacitor should be placed as close as possible to the module's input pins to minimize noise and ripple.
Yes, the RAC05-3.3SK can be used in redundant or parallel configurations to achieve higher power output or improved reliability. However, it's essential to ensure proper synchronization and ORing of the outputs to prevent damage or instability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RAC05-3.3SK Overview

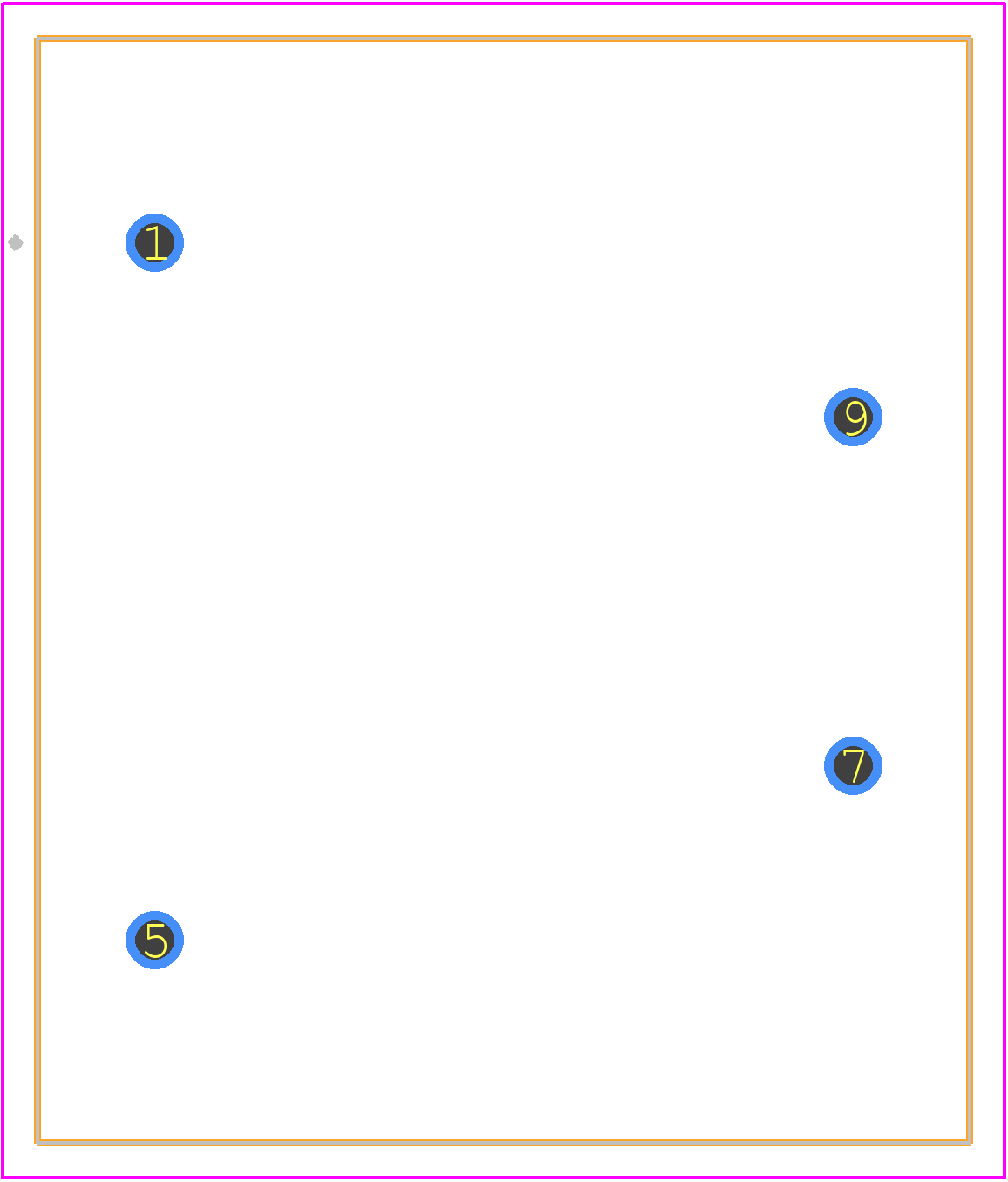

Use the download button to access the RAC05-3.3SK schematic symbol, PCB footprint, and 3D model.
