RAC06-15DC - RECOM Power

Description: POWER SUPPLY, AC-DC, 2 O/P, 6W

Download RAC06-15DC Model

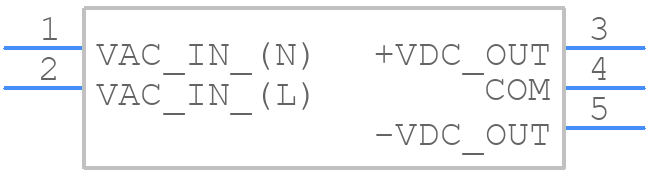

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

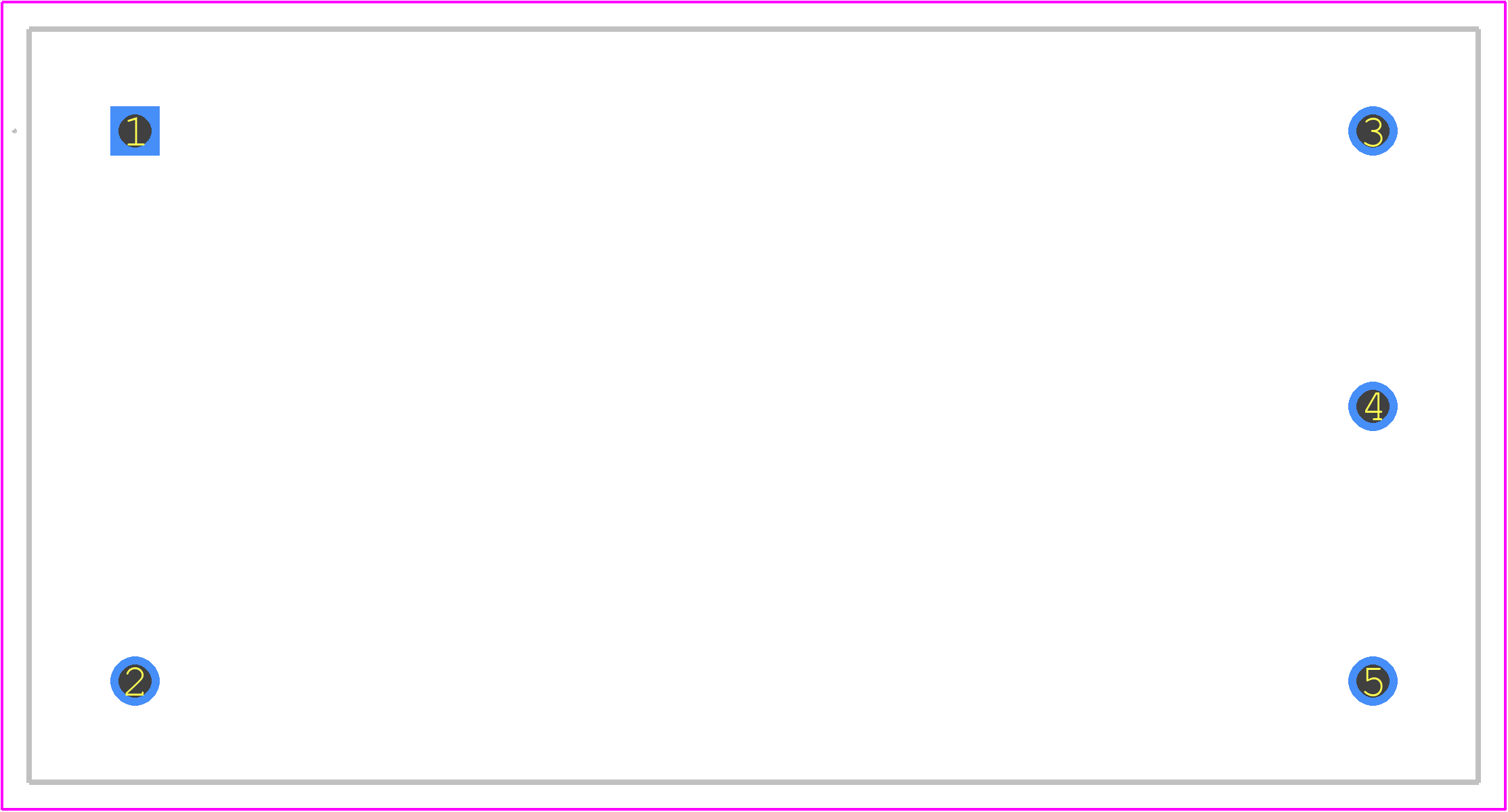

PCB Footprints
RAC06-15DC - RECOM Power PCB footprint - Other - Other - RAC06-15DC-2
click to zoom
3D Models
RAC06-15DC - RECOM Power  - 3D model - Other - RAC06-15DC-2
click to zoom

RAC06-15DC Details

  • Manufacturer Part Number:

    RAC06-15DC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DMA,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    RECOM Power GmbH

  • YTEOL:

    0

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, CSA, EAC, EN, IEC, UL

  • Control Mode:

    VOLTAGE-MODE

  • Efficiency (Main Output):

    79%

  • Input Voltage-Max:

    264 V

  • Input Voltage-Min:

    80 V

  • Input Voltage-Nom:

    115 V

  • JESD-30 Code:

    R-PDMA-P5

  • JESD-609 Code:

    e3

  • Length:

    53.5 mm

  • Line Regulation-Max:

    0.3%

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Voltage-Max:

    15.3 V

  • Output Voltage-Min:

    14.7 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Protections:

    OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; OVER LOAD

  • Qualification Status:

    Not Qualified

  • Ripple Voltage (Main Out):

    0.053025 Vrms

  • Seated Height-Max:

    16.9 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    6 W

  • Trim/Adjustable Output:

    NO

  • Width:

    27.8 mm

RAC06-15DC Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the RAC06-15DC is -40°C to +85°C, with a derating of 2.5% per °C above 60°C.
  • Yes, the RAC06-15DC is designed to operate in humid environments, but it's recommended to follow the manufacturer's guidelines for humidity and moisture protection.
  • The recommended input capacitor value for the RAC06-15DC is 10uF to 22uF, with a voltage rating of at least 25V.
  • No, the RAC06-15DC is not designed for parallel operation. Using multiple units in parallel may lead to instability and reduced reliability.
  • The minimum input voltage required for the RAC06-15DC to operate is 6.5V, but it's recommended to use a minimum of 7V to ensure stable operation.
