RAC15-05SK - RECOM Power

RAC15-05SK Details

• Manufacturer Part Number:

  RAC15-05SK

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

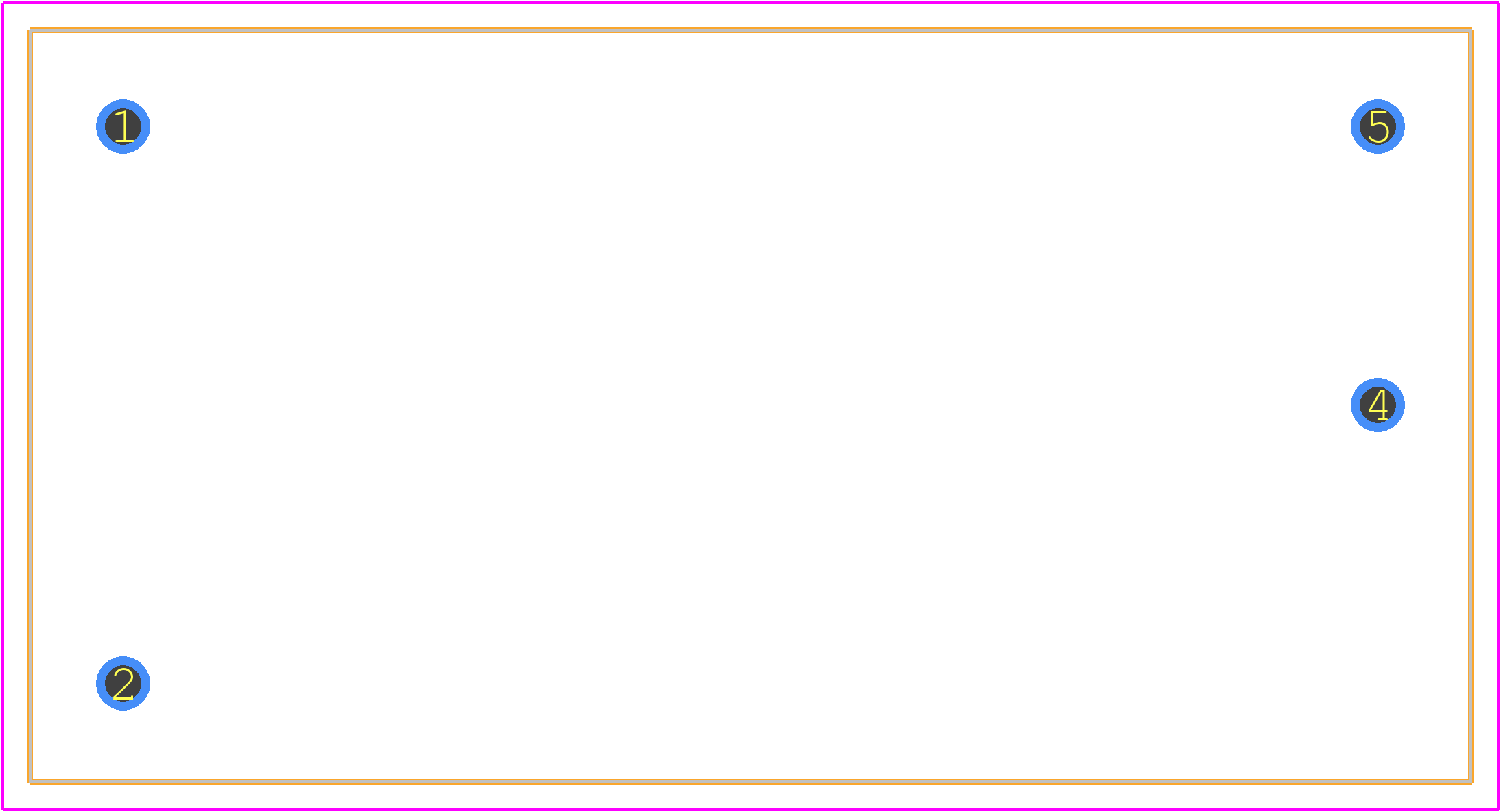

• Package Description:

  MODULE-5/4

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Mainland China, Taiwan

• ECCN Code:

  EAR99

• Date Of Intro:

  2018-05-30

• Manufacturer:

  RECOM Power GmbH

• YTEOL:

  6

• Analog IC - Other Type:

  AC-DC REGULATED POWER SUPPLY MODULE

• Input Voltage-Max:

  264 V

• Input Voltage-Min:

  85 V

• Input Voltage-Nom:

  230 V

• JESD-30 Code:

  R-PDMA-P4

• JESD-609 Code:

  e3

• Length:

  52.5 mm

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  4

• Operating Temperature-Max:

  65 °C

• Operating Temperature-Min:

  -40 °C

• Output Voltage-Max:

  5.1 V

• Output Voltage-Min:

  4.9 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Seated Height-Max:

  23.5 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Temperature Grade:

  OTHER

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  15 W

• Trim/Adjustable Output:

  NO

• Width:

  27.4 mm
