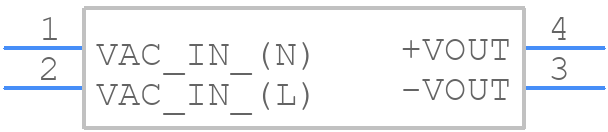

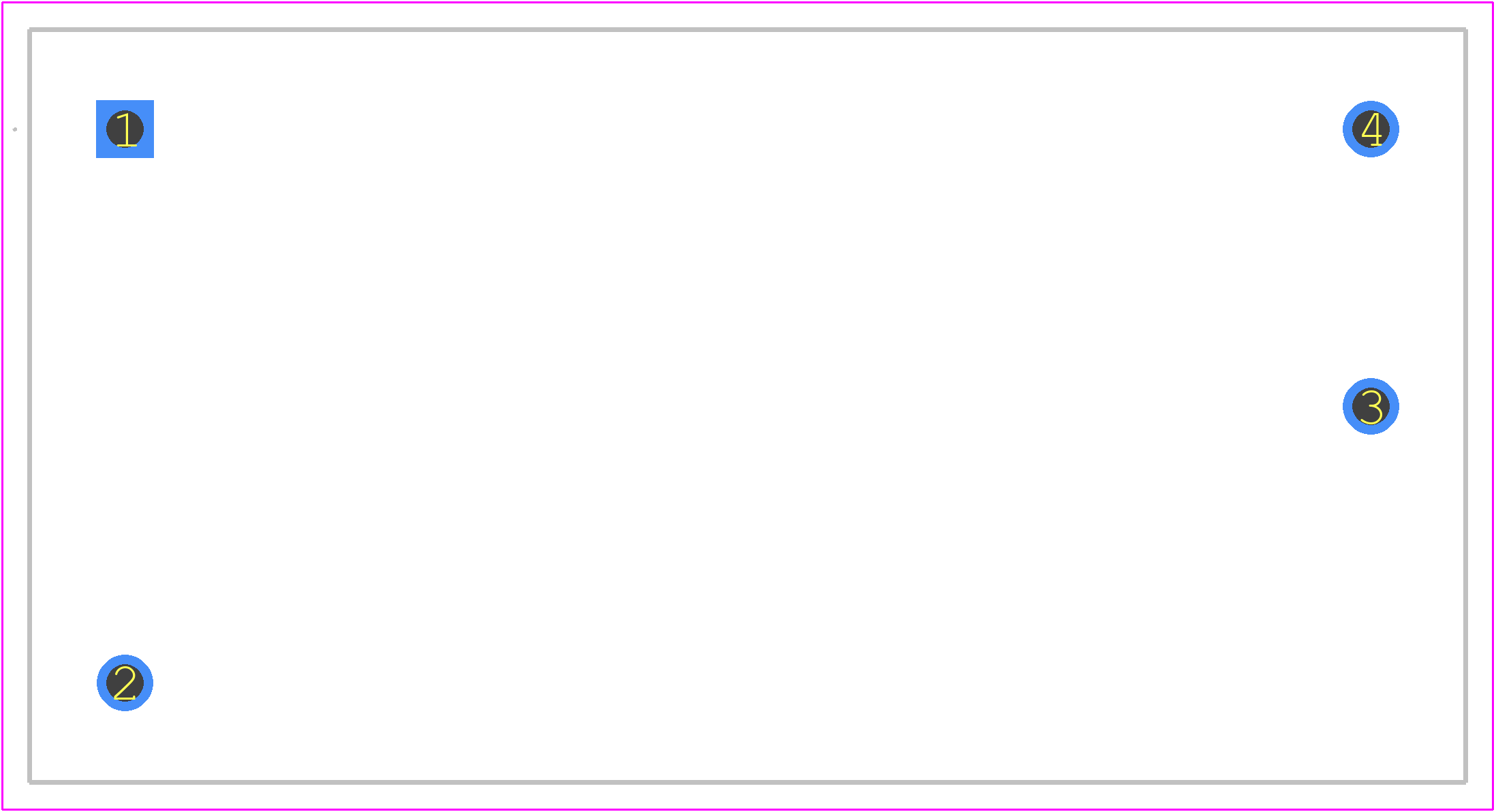

RACM16E-05SK/277 - RECOM Power

RACM16E-05SK/277 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout and thermal management for optimal performance?
  RECOM Power Inc recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
• How do I ensure electromagnetic compatibility (EMC) with this module?
  To ensure EMC, RECOM Power Inc recommends following the layout and grounding guidelines in the datasheet, using a metal enclosure, and adding EMI filters and shielding as necessary.
• What is the derating curve for this module, and how does it affect the output power?
  The derating curve for RACM16E-05SK/277 is typically provided in the datasheet or can be requested from RECOM Power Inc. It shows the reduction in output power as a function of temperature, and is used to ensure the module operates within its safe operating area.
• Can I use this module in a high-vibration or high-shock environment?
  RECOM Power Inc recommends following the guidelines in the datasheet for vibration and shock testing, and considering additional mechanical reinforcement or potting compounds to ensure the module's reliability in harsh environments.
• How do I troubleshoot common issues like overvoltage, undervoltage, or overheating with this module?
  RECOM Power Inc recommends following the troubleshooting guide in the datasheet, using oscilloscopes and multimeters to measure voltage and current, and checking for proper thermal management and PCB layout.
