RAHPCUA30E - Switchcraft

Description: USB-A (USB TYPE-A) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 9 Position Through Hole, Right Angle

Download RAHPCUA30E Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this RAHPCUA30E model

Email notifications will be applied after download.

Send part feedback

Symbol

RAHPCUA30E - Switchcraft - PCB symbol

PCB Footprints

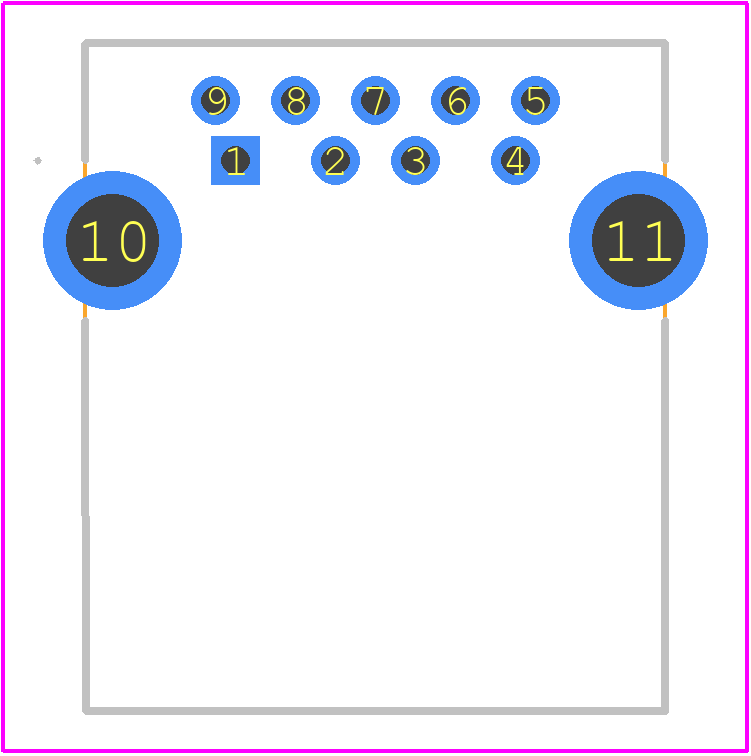

RAHPCUA30E - Switchcraft PCB footprint - Other - Other - RAHPCUA30E-1

3D Models

RAHPCUA30E - Switchcraft - 3D model - Other - RAHPCUA30E-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for RAHPCUA30E
Part Number RAHPCUA30E
Manufacturer Switchcraft
Pin Count 11
Part Category Connector
Package Category Other
Footprint Name Other - RAHPCUA30E-1
Released Date May 18, 2025
Last Modified Date May 18, 2025 7:21 AM UTC
Pinout / Pin List Click Here (Member Only)

RAHPCUA30E Details

Manufacturer Part Number:
RAHPCUA30E
Manufacturer:
Switchcraft Conxall

Trust Checks

Community Provided

System Verified

Community Approved

RAHPCUA30E Overview

Use the download button to access the RAHPCUA30E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RAHPC, or try a keyword search, such as Fixed Resistors
