RAJ2930104AGM - Renesas Electronics

Description: The RAJ2930104AGM is a gate driver IC for IGBT and SiC MOSFET gate drive in high-voltage inverter applications. Integrated 3.75kVrms micro-isolators provide data transfer with high-voltage isolation between the primary circuit (MCU side) and the secondary circuit (IGBT side). In addition, it boasts superior common-mode transient immunity (CMTI) performance of over 150V/ns, ensuring reliable communication and increased noise immunity while meeting the high voltages and fast switching speeds required in inver

Download RAJ2930104AGM Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this RAJ2930104AGM model

Email notifications will be applied after download.

Send part feedback

Symbol

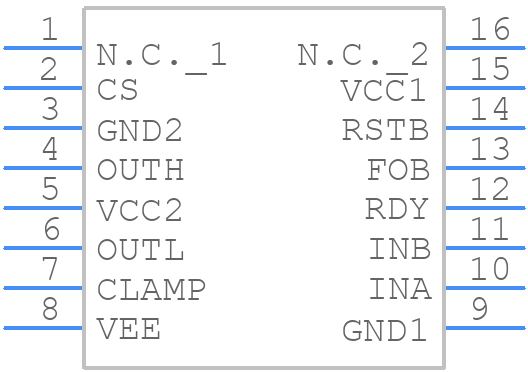

RAJ2930104AGM - Renesas Electronics - PCB symbol

PCB Footprints

RAJ2930104AGM - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PRSP0016DR-A __

3D Models

RAJ2930104AGM - Renesas Electronics - 3D model - Small Outline Packages - PRSP0016DR-A __

Datasheet Download Datasheet
Stock & Prices Price & Stock for RAJ2930104AGM
Part Number RAJ2930104AGM
Manufacturer Renesas Electronics
Pin Count 16
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - PRSP0016DR-A __
Released Date Dec 25, 2025
Last Modified Date Dec 25, 2025 5:26 AM UTC
Pinout / Pin List Click Here (Member Only)

RAJ2930104AGM Details

Manufacturer Part Number:
RAJ2930104AGM
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Renesas Electronics Corporation
Interface IC Type:
PUSH-PULL BASED MOSFET DRIVER

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

RAJ2930104AGM Overview

Use the download button to access the RAJ2930104AGM schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RAJ29, or try a keyword search, such as MOSFET Drivers
