Part Image

RASH10 - Switchcraft

Description: Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Surface Mount, Through Hole

Download RASH10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

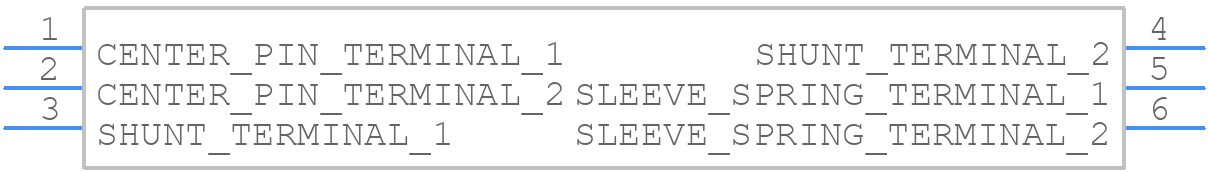

Symbol
RASH10 - Switchcraft - PCB symbol
click to zoom

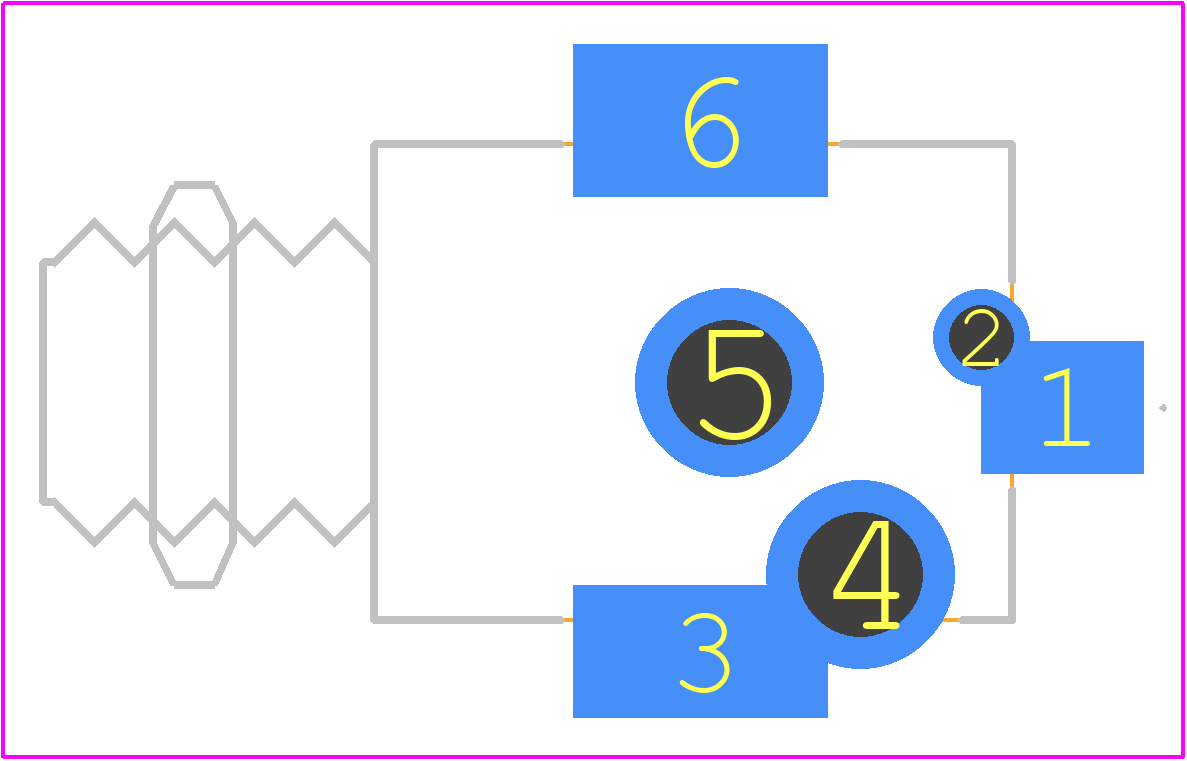

PCB Footprints
RASH10 - Switchcraft PCB footprint - Other - Other - RASH10-5
click to zoom
3D Models
RASH10 - Switchcraft - 3D model - Other - RASH10-5
click to zoom

RASH10 Details

  • Manufacturer Part Number:

    RASH10

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Switchcraft Conxall

  • YTEOL:

    6

  • Body Breadth:

    0.43 inch

  • Body Depth:

    0.95 inch

  • Body Length:

    0.6 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Insulator Material:

    POLYETHYLENE

  • Mounting Type:

    BOARD AND PANEL

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2 mm

  • Rated Current (Power):

    11 A

  • Rated Voltage:

    24 V

  • Termination Type:

    SOLDER AND SURFACE MOUNT

RASH10 Frequently Asked Questions (FAQs)

  • The recommended torque for the RASH10 connector is 10-15 in-lbs (1.1-1.7 Nm) for the screw terminals and 5-10 in-lbs (0.56-1.1 Nm) for the jack screws.
  • Yes, the RASH10 is designed to withstand high-vibration environments. It meets the vibration requirements of MIL-C-5015, which includes 10-2000 Hz frequency range and 20 G acceleration.
  • Yes, the RASH10 is part of the Conxall series and is compatible with other Conxall connectors, including the RAS, RASM, and RASN series.
  • The operating temperature range of the RASH10 is -55°C to +125°C (-65°F to +257°F), making it suitable for use in a wide range of applications.
  • Yes, the RASH10 is designed to operate in harsh environments. It meets the requirements of MIL-C-5015 for humidity and salt spray, and is also resistant to corrosion and moisture.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RASH10 Overview

Use the download button to access the RASH10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RASH1, or try a keyword search, such as DC Power Plugs or Jacks
