RB218NS100FH - ROHM Semiconductor

RB218NS100FH Details

• Manufacturer Part Number:

  RB218NS100FH

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

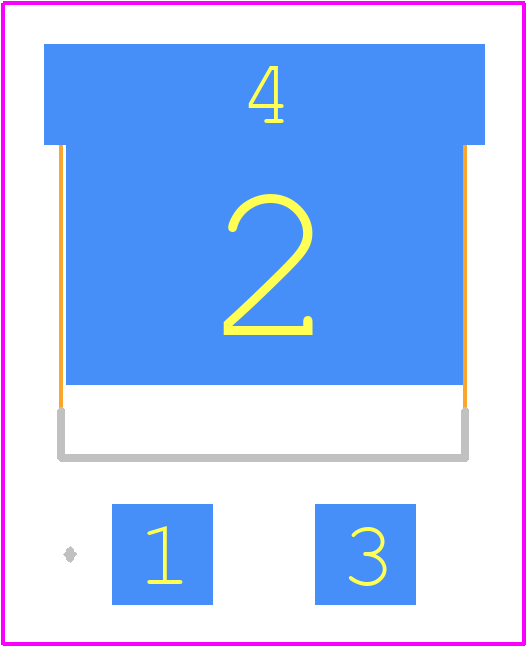

• Package Description:

  SC-83, TO-263S, 3/2 PIN

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.80

• Manufacturer:

  ROHM Semiconductor

• YTEOL:

  6.38

• Additional Feature:

  HIGH RELIABILITY

• Application:

  GENERAL PURPOSE

• Case Connection:

  CATHODE

• Configuration:

  COMMON CATHODE, 2 ELEMENTS

• Diode Element Material:

  SILICON

• Diode Type:

  RECTIFIER DIODE

• Forward Voltage-Max (VF):

  0.87 V

• JEDEC-95 Code:

  TO-263AB

• JESD-30 Code:

  R-PSSO-G2

• Moisture Sensitivity Level:

  1

• Non-rep Pk Forward Current-Max:

  100 A

• Number of Elements:

  2

• Number of Phases:

  1

• Number of Terminals:

  2

• Operating Temperature-Max:

  150 °C

• Output Current-Max:

  10 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Reference Standard:

  AEC-Q101

• Rep Pk Reverse Voltage-Max:

  110 V

• Reverse Current-Max:

  7 µA

• Surface Mount:

  YES

• Technology:

  SCHOTTKY

• Terminal Form:

  GULL WING

• Terminal Position:

  SINGLE
