RB550EAFHTR - ROHM Semiconductor

Description: 30V, 0.7A, SOT-25T, Schottky Barrier Diode for Automotive

Download RB550EAFHTR Model

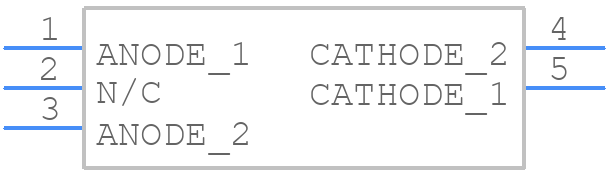

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RB550EAFHTR - ROHM Semiconductor PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - SOT-25T, (TSMD5)_2022
click to zoom
3D Models
RB550EAFHTR - ROHM Semiconductor  - 3D model - SOT23 (5-Pin) - SOT-25T, (TSMD5)_2022
click to zoom

RB550EAFHTR Details

  • Manufacturer Part Number:

    RB550EAFHTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOT-25T, 5 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Additional Feature:

    HIGH RELIABILITY

  • Application:

    GENERAL PURPOSE

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.49 V

  • JESD-30 Code:

    R-PDSO-G5

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    12 A

  • Number of Elements:

    2

  • Number of Phases:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    150 °C

  • Output Current-Max:

    0.7 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Reference Standard:

    AEC-Q101

  • Rep Pk Reverse Voltage-Max:

    30 V

  • Reverse Current-Max:

    50 µA

  • Reverse Test Voltage:

    30 V

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

RB550EAFHTR Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad size of at least 2.5mm x 2.5mm, with multiple vias connecting to a solid ground plane to dissipate heat efficiently. A thermal relief pattern around the pad is also recommended to prevent thermal stress.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves for the device. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature, and ensure good airflow around the device.
  • Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the internal ESD protection diodes.
  • To prevent ESD damage, handle the device by the body or pins, avoid touching the pins, and use an anti-static wrist strap or mat during assembly. Ensure that the PCB and components are properly grounded during assembly and testing.
  • Store the device in a dry, cool place (less than 30°C and 60% RH) away from direct sunlight and moisture. Avoid storing the device in a location with high humidity or near a heat source.
