RB6132-50-0M2 footprint, schematic symbol and 3D model by Schaffner

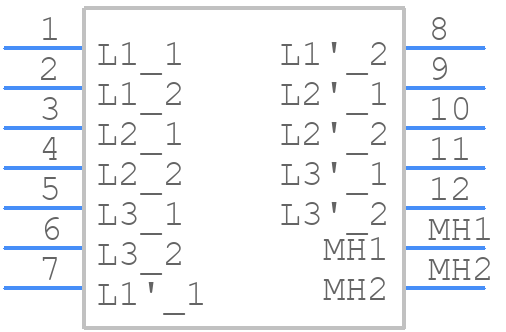

Symbol

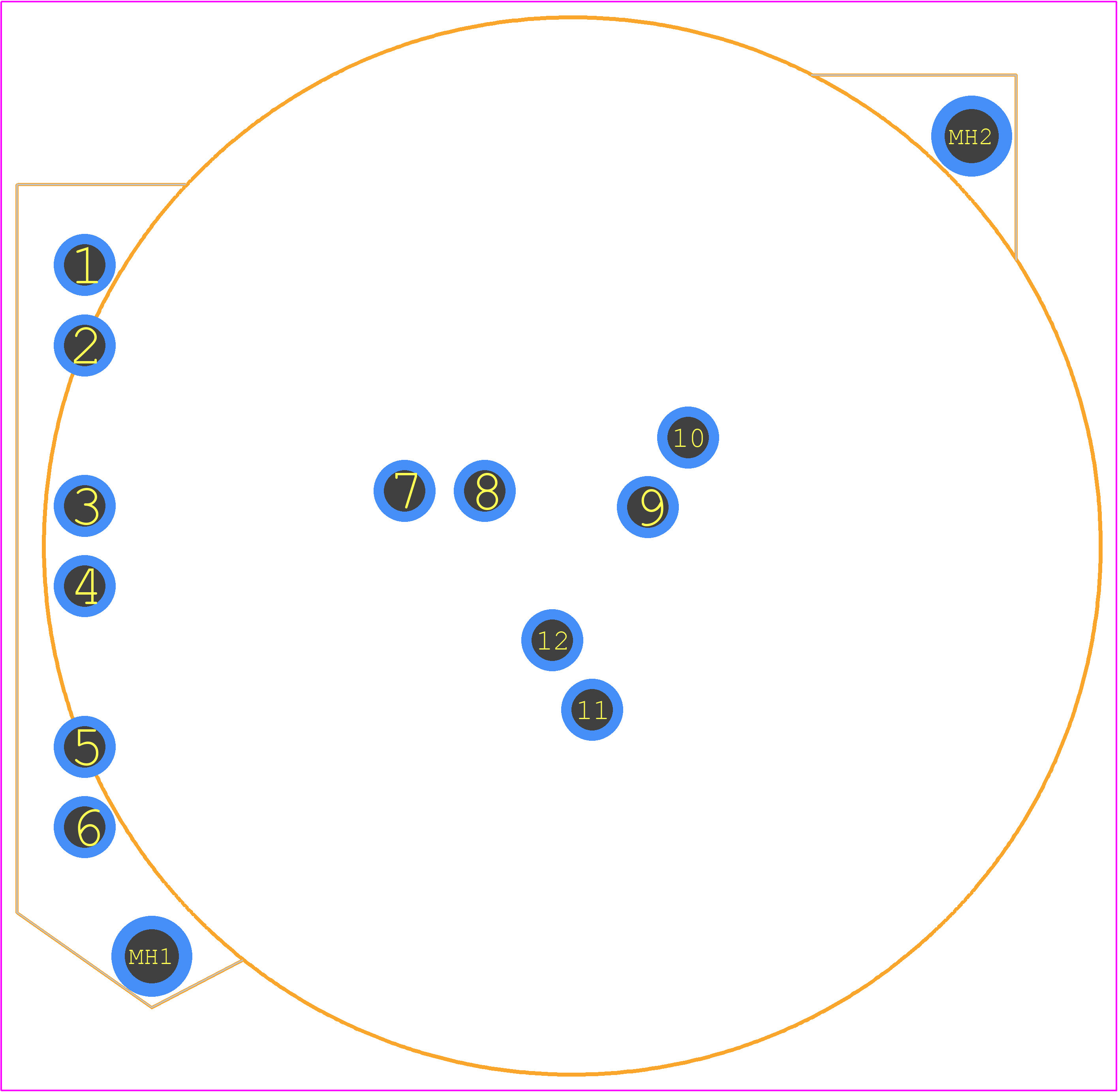

PCB Footprints

RB6132-50-0M2 Details

Schaffner recommends a minimum spacing of 2mm between the component and other conductive elements on the PCB, and a symmetrical layout to minimize electromagnetic interference (EMI).
While the RB6132-50-0M2 is rated for operation up to 85°C, Schaffner recommends derating the component for temperatures above 70°C to ensure reliable operation and longevity.
The RB6132-50-0M2 is designed to suppress high-frequency noise and transients up to 100 MHz, but Schaffner recommends additional filtering or shielding for applications with extreme noise levels.
Yes, the RB6132-50-0M2 is compatible with lead-free soldering processes, but Schaffner recommends following the recommended soldering profile to ensure reliable connections.
The typical lead time for the RB6132-50-0M2 is 6-8 weeks, and the minimum order quantity (MOQ) is 100 pieces, but this may vary depending on the region and distributor.

Expert Contribution

System Verified

Community Approved

Use the download button to access the RB6132-50-0M2 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like RB613, or try a keyword search, such as Mains Filters
