RB6522-16-1M0 footprint, schematic symbol and 3D model by Schaffner

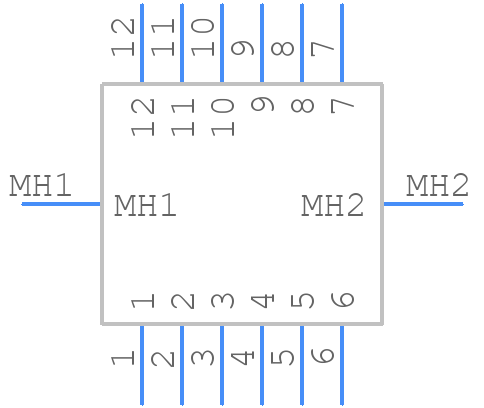

Symbol

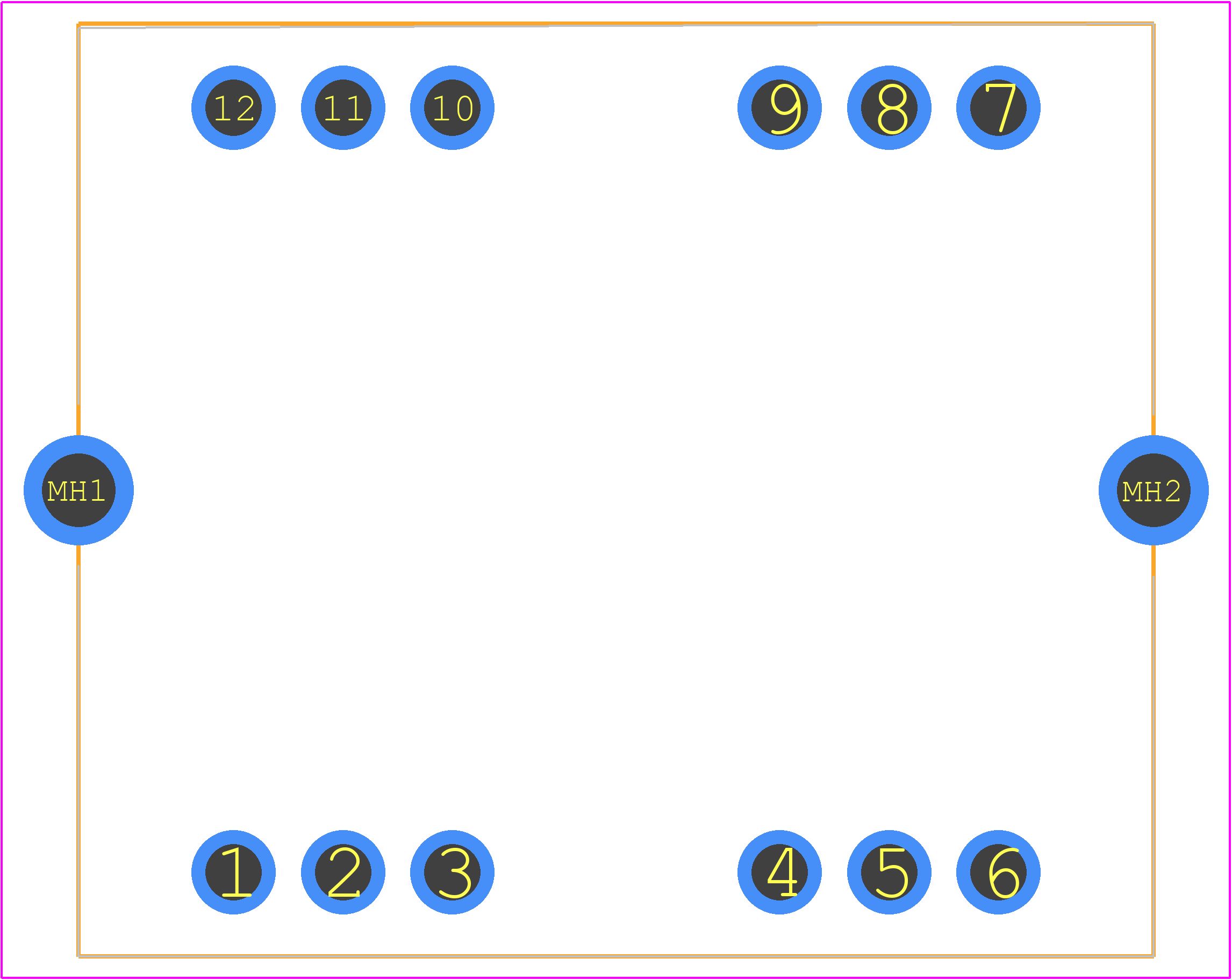

PCB Footprints

3D Models

RB6522-16-1M0 Details

Schaffner recommends a symmetrical layout with the component placed near the power entry point, and a solid ground plane underneath to minimize radiation. A minimum of 10mm clearance from other components is recommended.
The RB6522-16-1M0 is designed to attenuate high-frequency noise and harmonics through its proprietary filter design, which includes a combination of inductive and capacitive components.
The RB6522-16-1M0 is rated for operation from -40°C to +85°C, with a maximum storage temperature range of -40°C to +125°C.
Yes, the RB6522-16-1M0 is designed to meet the requirements of IEC 60939-2 and is suitable for use in safety-critical applications, such as medical devices and industrial control systems.
The RB6522-16-1M0 is designed to minimize the impact on power factor, with a typical power factor correction (PFC) of >0.95.

Expert Contribution

System Verified

Community Approved

Use the download button to access the RB6522-16-1M0 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RB652, or try a keyword search, such as Mains Filters
