RB6522-50-0M3 footprint, schematic symbol and 3D model by Schaffner

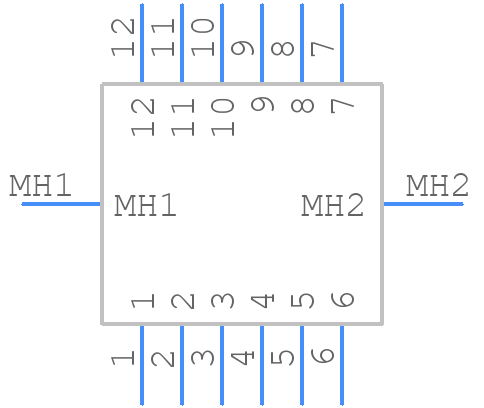

Symbol

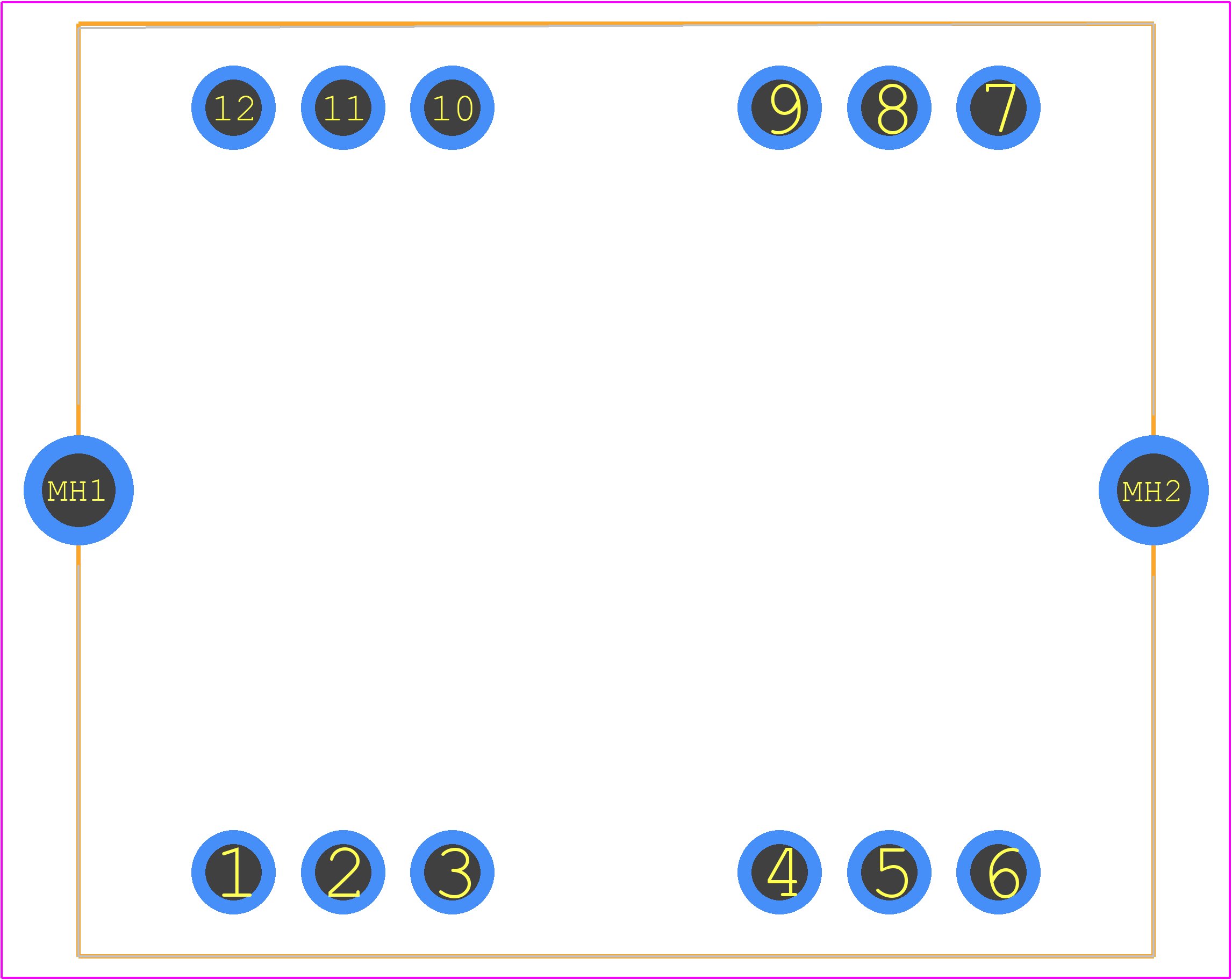

PCB Footprints

3D Models

RB6522-50-0M3 Details

Schaffner recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to ensure optimal performance and reliability.
The RB6522-50-0M3 is designed to mitigate high-frequency noise and EMI through its internal filtering and shielding. However, additional external filtering or shielding may be required depending on the specific application and environment.
The RB6522-50-0M3 is rated for operation from -40°C to +85°C, but derating may be required for high-temperature applications. Consult the datasheet and Schaffner's application notes for specific guidance.
The RB6522-50-0M3 is designed to meet standard vibration and shock requirements, but may require additional mechanical support or mounting for extreme environments. Consult Schaffner's application notes and perform thorough testing for specific applications.
Store the RB6522-50-0M3 in a dry, cool environment, away from direct sunlight and moisture. Handle the device by the edges to prevent damage to the pins or internal components.

Expert Contribution

System Verified

Community Approved

Use the download button to access the RB6522-50-0M3 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RB652, or try a keyword search, such as Mains Filters
