RB706D-40T146 - ROHM Semiconductor

Description: 40V, 30mA, SOT-346, Schottky Barrier Diode

Download RB706D-40T146 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

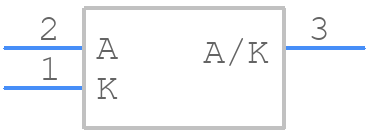

Symbol
RB706D-40T146 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
RB706D-40T146 - ROHM Semiconductor PCB footprint - Other - Other - SOT-346
click to zoom
3D Models
RB706D-40T146 - ROHM Semiconductor - 3D model - Other - SOT-346
click to zoom

RB706D-40T146 Details

  • Manufacturer Part Number:

    RB706D-40T146

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.70

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    6

  • Additional Feature:

    HIGH RELIABILITY

  • Application:

    GENERAL PURPOSE

  • Configuration:

    SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.37 V

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    0.2 A

  • Number of Elements:

    2

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    125 °C

  • Output Current-Max:

    0.03 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    45 V

  • Reverse Current-Max:

    1 µA

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

RB706D-40T146 Frequently Asked Questions (FAQs)

  • A good starting point is to follow the recommended land pattern in the datasheet. Additionally, ensure a solid ground plane, use thermal vias, and keep the component away from heat sources. Consult ROHM's application notes for more guidance.
  • Follow the datasheet's recommended output capacitor and input capacitor values. Ensure the output capacitor's ESR is within the recommended range. Add a 10nF-100nF ceramic capacitor in parallel with the output capacitor for additional stability.
  • While the datasheet doesn't specify a maximum input voltage ripple, a general rule of thumb is to keep it below 1% of the input voltage. Excessive ripple can affect the regulator's performance and stability.
  • The RB706D-40T146 is rated for operation up to 125°C. However, consider derating the output current and voltage according to the temperature derating curve in the datasheet. Ensure proper heat sinking and thermal management to prevent overheating.
  • Add a TVS (Transient Voltage Suppressor) diode or a varistor in parallel with the input capacitor to absorb voltage surges. Ensure the TVS diode's clamping voltage is below the regulator's maximum input voltage rating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RB706D-40T146 Overview

Use the download button to access the RB706D-40T146 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RB706, or try a keyword search, such as Rectifier Diodes
