RB706F-40T106 - ROHM Semiconductor

Description: 40V, 30mA, SOT-323, Schottky Barrier Diode

Download RB706F-40T106 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

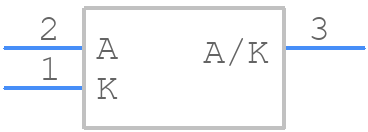

Symbol
RB706F-40T106 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
RB706F-40T106 - ROHM Semiconductor PCB footprint - Other - Other - UMD3 (SC-70)
click to zoom
3D Models
RB706F-40T106 - ROHM Semiconductor - 3D model - Other - UMD3 (SC-70)
click to zoom

RB706F-40T106 Details

  • Manufacturer Part Number:

    RB706F-40T106

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.70

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    6

  • Additional Feature:

    HIGH RELIABILITY

  • Application:

    GENERAL PURPOSE

  • Configuration:

    SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.37 V

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    0.2 A

  • Number of Elements:

    2

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    125 °C

  • Output Current-Max:

    0.03 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    45 V

  • Reverse Current-Max:

    1 µA

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

RB706F-40T106 Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Ensure proper thermal management, follow recommended PCB layout, and consider derating the device's power dissipation according to the temperature derating curve provided in the datasheet.
  • Handle the device with an anti-static wrist strap or mat, and follow standard ESD precautions. The device has built-in ESD protection, but it's not a substitute for proper handling and storage procedures.
  • Yes, the RB706F-40T106 is AEC-Q101 qualified, making it suitable for automotive and high-reliability applications. However, ensure you follow the recommended operating conditions and derating guidelines.
  • Consult the datasheet's troubleshooting section, and check for proper power supply, decoupling, and PCB layout. If issues persist, contact ROHM's technical support or a local representative for assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RB706F-40T106 Overview

Use the download button to access the RB706F-40T106 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RB706, or try a keyword search, such as Rectifier Diodes
