ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane or a dedicated heat sink.
To ensure reliability, follow the recommended operating temperature range (up to 150°C), and consider derating the power dissipation according to the temperature. Also, ensure proper thermal design, and consider using a heat sink or thermal interface material to reduce thermal resistance.
ROHM recommends a soldering profile with a peak temperature of 260°C, a dwell time above 240°C of 30-60 seconds, and a total process time of 60-120 seconds. The soldering iron should be set to a temperature of 350-370°C.
While the RB731XNFHTR is not specifically designed for high-humidity environments, it can still be used with proper precautions. Ensure the device is stored in a dry environment, and consider using a moisture-resistant coating or conformal coating to protect the device from moisture.
Handle the RB731XNFHTR with ESD-protective equipment, such as wrist straps, mats, and bags. Ensure the assembly line has an ESD-controlled environment, and consider using ESD-protective packaging for storage and shipping.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RB731XNFHTR Overview

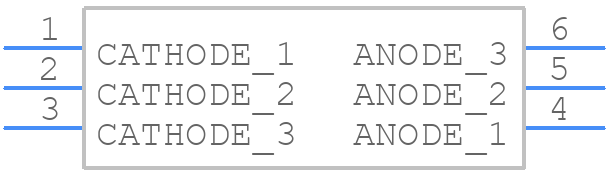

Use the download button to access the RB731XNFHTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RB731,
or try a keyword search, such as Rectifier Diodes
