RB8532-16-1M3 Frequently Asked Questions (FAQs)

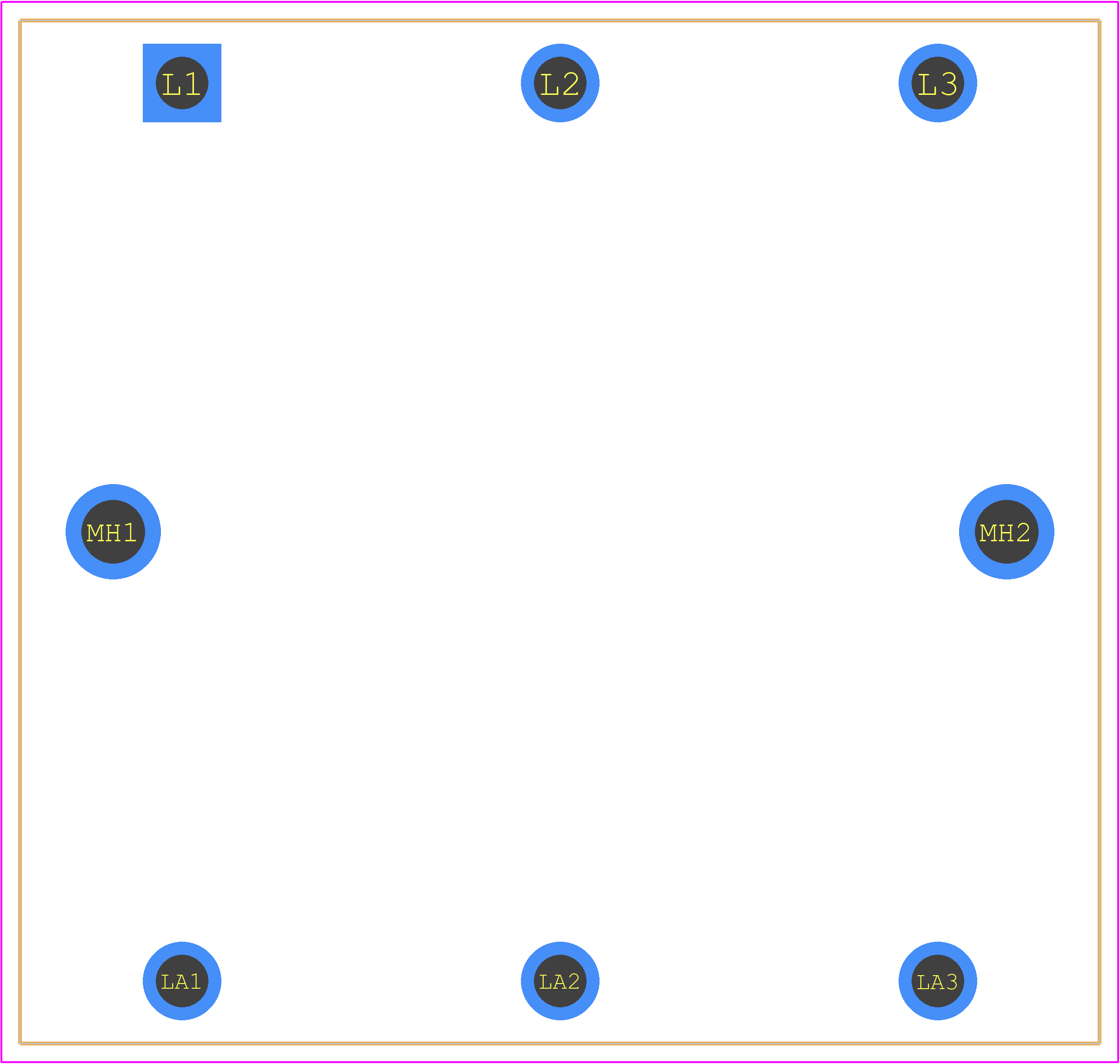

• What is the recommended PCB layout and spacing for optimal performance of the RB8532-16-1M3?
  Schaffner recommends a minimum spacing of 2mm between the component and any other components or conductive paths on the PCB to ensure optimal performance and minimize electromagnetic interference (EMI). A symmetrical layout with a solid ground plane is also recommended.
• Can the RB8532-16-1M3 be used in high-temperature applications?
  While the RB8532-16-1M3 is rated for operation up to 85°C, it's essential to consider the derating curves and thermal management in high-temperature applications. Schaffner recommends consulting their application notes and thermal simulation tools to ensure the component's reliability and performance.
• How does the RB8532-16-1M3 handle high-frequency noise and EMI?
  The RB8532-16-1M3 is designed to provide excellent high-frequency noise and EMI attenuation. Its internal construction and materials are optimized to reduce radiation and absorption of electromagnetic energy, making it suitable for use in noise-sensitive applications.
• Is the RB8532-16-1M3 compatible with lead-free soldering processes?
  Yes, the RB8532-16-1M3 is compatible with lead-free soldering processes. Schaffner ensures that their components meet the requirements of the RoHS directive and can withstand the higher temperatures associated with lead-free soldering.
• What is the recommended storage and handling procedure for the RB8532-16-1M3?
  Schaffner recommends storing the RB8532-16-1M3 in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Handling should be done with electrostatic discharge (ESD) precautions, such as using ESD-safe gloves and wrist straps, to prevent damage to the component.
