RBQ10RSM65BTL1 - ROHM Semiconductor

Description: Schottky Diodes & Rectifiers Schottky Barrier Diode 65V, 10A, TO-277GE, Low VF SBD

Download RBQ10RSM65BTL1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

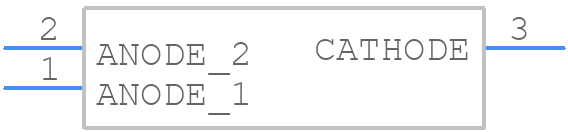

Symbol
RBQ10RSM65BTL1 - ROHM Semiconductor - PCB symbol
click to zoom

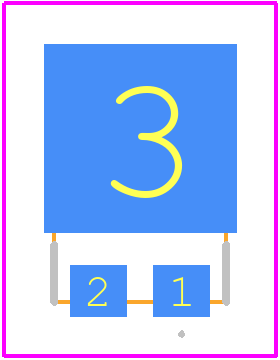

PCB Footprints
RBQ10RSM65BTL1 - ROHM Semiconductor PCB footprint - Other - Other - RBQ10RSM65BTL1-1
click to zoom
3D Models
RBQ10RSM65BTL1 - ROHM Semiconductor - 3D model - Other - RBQ10RSM65BTL1-1
click to zoom

RBQ10RSM65BTL1 Details

  • Manufacturer Part Number:

    RBQ10RSM65BTL1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TO-277GE, 3 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    6

  • Additional Feature:

    HIGH RELIABILITY

  • Application:

    GENERAL PURPOSE

  • Case Connection:

    CATHODE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.67 V

  • JEDEC-95 Code:

    TO-277A

  • JESD-30 Code:

    R-PDSO-F3

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    150 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    175 °C

  • Output Current-Max:

    10 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Rep Pk Reverse Voltage-Max:

    65 V

  • Reverse Current-Max:

    150 µA

  • Reverse Test Voltage:

    65 V

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

RBQ10RSM65BTL1 Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad size of 2.5mm x 2.5mm with a minimum of 1oz copper thickness and a thermal via array underneath the package to ensure optimal heat dissipation.
  • To ensure reliable operation, follow the recommended derating curves for junction temperature (Tj) and ambient temperature (Ta) in the datasheet. Additionally, consider using a heat sink or thermal interface material to reduce thermal resistance.
  • ROHM recommends a soldering profile with a peak temperature of 260°C, a dwell time of 10-30 seconds, and a cooling rate of 3-5°C/s to prevent thermal shock and ensure reliable solder joints.
  • Yes, the RBQ10RSM65BTL1 is designed to withstand vibrations up to 10G (rms) in the frequency range of 10-2000Hz. However, it's essential to follow proper PCB design and assembly guidelines to ensure reliable operation.
  • Store the RBQ10RSM65BTL1 in a dry, cool place with a temperature range of 5-30°C and humidity below 60%. Avoid exposing the component to direct sunlight, moisture, or extreme temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RBQ10RSM65BTL1 Overview

Use the download button to access the RBQ10RSM65BTL1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RBQ10, or try a keyword search, such as Rectifier Diodes
