RC19002AGNT#BD0 - Renesas Electronics

Description: The RC19002 is a 2-output PCIe Gen6 buffer that is backward compatible to earlier PCIe generations. The RC19002 provides ultra-low additive jitter and reduced in-to-out delay performance for better design-margin and incorporates several features for easier and more robust design.

Download RC19002AGNT#BD0 Model

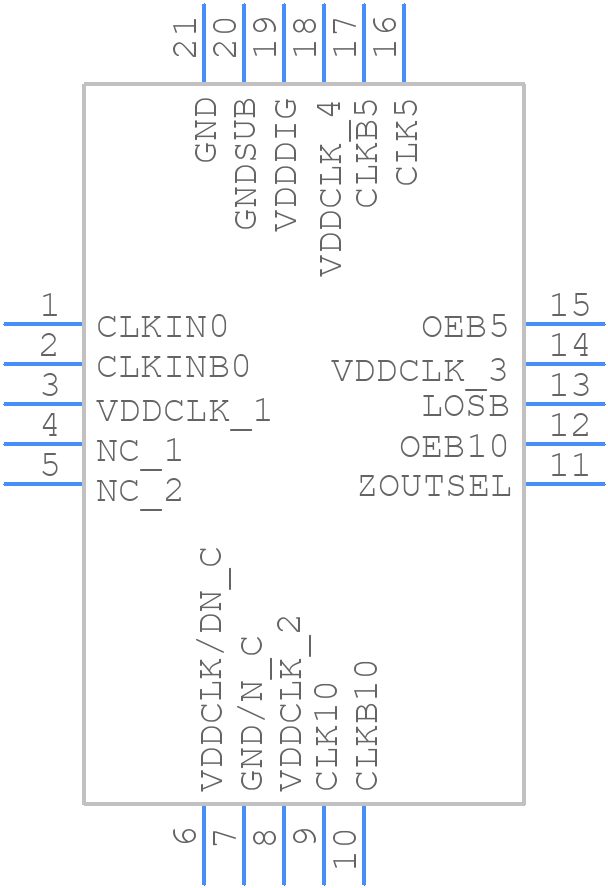

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RC19002AGNT#BD0 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN 3.00x3.00x1.00 mm 0.40mm P
click to zoom
3D Models
RC19002AGNT#BD0 - Renesas Electronics  - 3D model - Quad Flat No-Lead - VFQFPN 3.00x3.00x1.00 mm 0.40mm P
click to zoom

RC19002AGNT#BD0 Details

  • Manufacturer Part Number:

    RC19002AGNT#BD0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFQFPN-20

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks, 1 Day

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Family:

    RC190

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-PQCC-N20

  • Length:

    3 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.002 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Number of True Outputs:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.12SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    73 mA

  • Propagation Delay (tpd):

    1.8 ns

  • Same Edge Skew-Max (tskwd):

    0.06 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.63 V

  • Supply Voltage-Min (Vsup):

    2.97 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

  • fmax-Min:

    400 MHz

RC19002AGNT#BD0 Frequently Asked Questions (FAQs)

  • Renesas provides a reference design guide for the RC19002AGNT, which includes recommendations for PCB layout, thermal management, and component placement. It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and electromagnetic compatibility.
  • The RC19002AGNT requires a specific power sequencing and voltage regulation scheme to ensure proper operation. Renesas provides a power management guide that outlines the recommended power-up and power-down sequences, as well as voltage regulator selection and design considerations.
  • The RC19002AGNT has multiple internal oscillators and clock management options. Renesas provides a clock management guide that outlines the recommended settings for each oscillator, including frequency selection, clock division, and synchronization. It's essential to follow these guidelines to ensure proper clock operation and synchronization.
  • To optimize power consumption and reduce heat generation, it's essential to follow Renesas' guidelines for power management, including dynamic voltage and frequency scaling, clock gating, and power gating. Additionally, optimizing the system's firmware and software can also help reduce power consumption and heat generation.
  • Renesas provides guidelines for ESD protection and latch-up prevention, including the use of ESD protection diodes, latch-up prevention circuits, and PCB design considerations. It's essential to follow these guidelines to ensure the device's reliability and prevent damage from electrostatic discharge and latch-up events.
