RC19002AGNT#KD0 - Renesas Electronics

Description: The RC19002 is a 2-output PCIe Gen6 buffer that is backward compatible to earlier PCIe generations. The RC19002 provides ultra-low additive jitter and reduced in-to-out delay performance for better design-margin and incorporates several features for easier and more robust design.

Download RC19002AGNT#KD0 Model

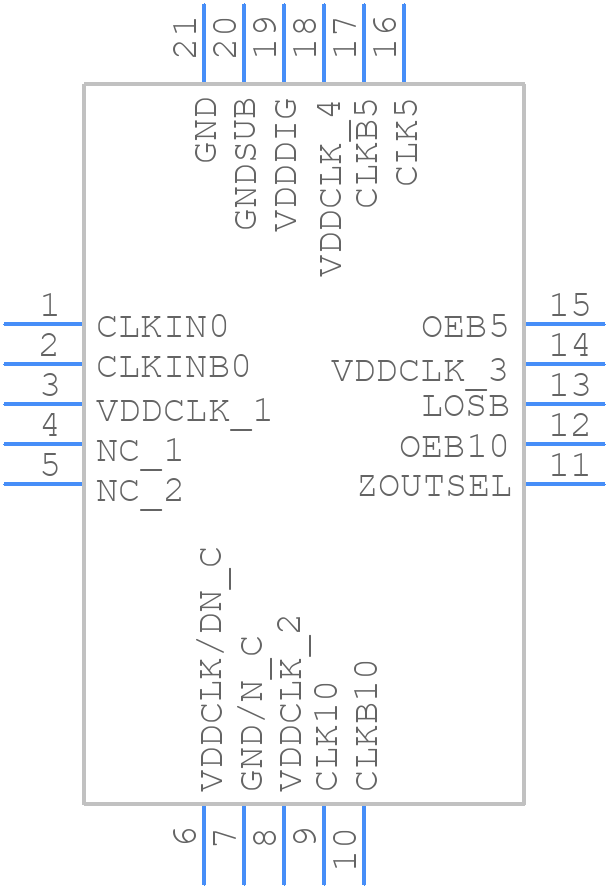

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RC19002AGNT#KD0 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN 3.00x3.00x1.00 mm 0.40mm P
click to zoom
3D Models
RC19002AGNT#KD0 - Renesas Electronics  - 3D model - Quad Flat No-Lead - VFQFPN 3.00x3.00x1.00 mm 0.40mm P
click to zoom

RC19002AGNT#KD0 Details

  • Manufacturer Part Number:

    RC19002AGNT#KD0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFQFPN-20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Family:

    RC190

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-PQCC-N20

  • Length:

    3 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.002 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Number of True Outputs:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.12SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    73 mA

  • Propagation Delay (tpd):

    1.8 ns

  • Same Edge Skew-Max (tskwd):

    0.06 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.63 V

  • Supply Voltage-Min (Vsup):

    2.97 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

  • fmax-Min:

    400 MHz
