Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces short, using a solid ground plane, and minimizing noise coupling. Additionally, consider using a 4-layer PCB with a dedicated power plane and a separate ground plane.
To ensure stability, follow the recommended component values and PCB layout. Additionally, consider adding a small capacitor (e.g., 10nF) between the output and the inverting input to improve stability. Also, make sure the output is properly terminated, and the input is properly biased.
The maximum power dissipation for the RC4136NE4 is not explicitly stated in the datasheet. However, based on the package thermal resistance and the maximum junction temperature, the maximum power dissipation can be calculated. As a rough estimate, it's around 1.5W. However, it's essential to perform thermal calculations and consider heat sinking or other thermal management techniques to ensure reliable operation.
Yes, the RC4136NE4 can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is matched to the source impedance, and the output is properly terminated to prevent oscillations. Additionally, consider adding a small capacitor (e.g., 10nF) between the output and the inverting input to improve stability.
The RC4136NE4 has internal ESD protection, but it's still essential to follow good ESD handling practices during manufacturing and assembly. Consider adding external ESD protection devices, such as TVS diodes or ESD protection arrays, to protect the device from external ESD events.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RC4136NE4 Overview

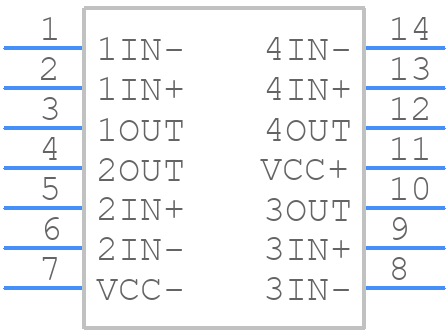

Use the download button to access the RC4136NE4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RC413,
or try a keyword search, such as Operational Amplifiers
