RCD-24-0.70/Vref footprint, schematic symbol and 3D model by RECOM Power

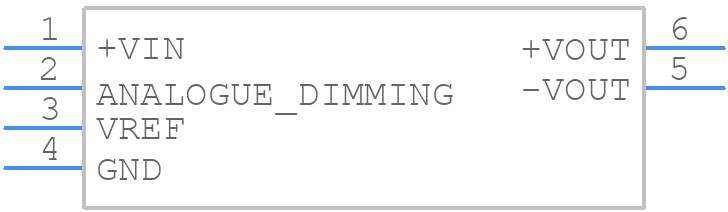

Symbol

click to zoom

PCB Footprints

RCD-24-0.70/Vref - RECOM Power PCB footprint - Other - Other - RCD-24

click to zoom

3D Models

RCD-24-0.70/Vref - RECOM Power - 3D model - Other - RCD-24

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RCD-24-0.70/Vref
Part Number RCD-24-0.70/Vref
Manufacturer RECOM Power
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - RCD-24
Released Date Jul 8, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

RCD-24-0.70/Vref Details

Manufacturer Part Number:
RCD-24-0.70/VREF
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
Package Description:
PACKAGE-6
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
Manufacturer:
RECOM Power GmbH
YTEOL:
7
Analog IC - Other Type:
DC-DC CURRENT SOURCE MODULE
Approvals:
EN, UL
Control Mode:
VOLTAGE-MODE
Efficiency (Main Output):
96%
Input Voltage-Max:
36 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-PDMA-P6
JESD-609 Code:
e3
Length:
22.1 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
71 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.7 A
Output Voltage-Max:
35 V
Output Voltage-Min:
2 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Protections:
SHORT CIRCUIT
Ripple Voltage (Main Out):
0.053025 Vrms
Seated Height-Max:
9 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Finish:
Tin (Sn)
Terminal Form:
PIN/PEG
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Total Power Output-Max:
24.5 W
Trim/Adjustable Output:
NO
Width:
12.55 mm

RCD-24-0.70/Vref Frequently Asked Questions (FAQs)

The maximum operating temperature range for the RCD-24-0.70/VREF is -40°C to +85°C, as per the datasheet. However, it's recommended to derate the output power above 60°C to ensure reliable operation.
The RCD-24-0.70/VREF is designed for low-voltage applications, and its input voltage range is limited to 3.3V to 5.5V. Using it in a high-voltage application may exceed its maximum ratings and compromise its reliability.
To ensure a stable output voltage, make sure to follow the recommended PCB layout guidelines, use a suitable input capacitor, and provide a stable input voltage within the specified range. Additionally, consider adding a output capacitor to filter out any noise or ripple.
The RCD-24-0.70/VREF is designed for low-current applications, with a maximum output current of 70mA. Using it in a high-current application may exceed its maximum ratings and compromise its reliability. Consider using a different model or a higher-current version if needed.
The RCD-24-0.70/VREF has built-in EMI filtering, but it's still important to follow proper PCB design and layout guidelines to minimize noise and EMI effects. Additionally, consider adding external filtering components if necessary.

Trust Checks

Expert Contribution

System Verified

Community Approved

RCD-24-0.70/Vref Overview

Use the download button to access the RCD-24-0.70/Vref schematic symbol, PCB footprint, and 3D model.
