RECOM Power Inc recommends a star-point grounding layout to minimize noise and ensure optimal performance. A dedicated ground plane and short, direct connections to the input and output capacitors are also recommended.
While the RCD-24-0.70/W/VREF is rated for operation up to 85°C, RECOM Power Inc recommends derating the output power by 2.5% per degree above 60°C to ensure reliable operation. Additionally, ensure that the device is mounted on a suitable heat sink to dissipate heat effectively.
To ensure EMC, RECOM Power Inc recommends using a suitable EMI filter at the input, keeping the input and output cables as short as possible, and using a shielded enclosure to minimize radiation. Additionally, ensure that the device is installed in a way that minimizes loop areas and reduces radiation.
RECOM Power Inc recommends using a low-ESR, X7R or X5R ceramic capacitor with a value of 10uF to 22uF for the input capacitor. This helps to filter out input noise and ensure stable operation.
Yes, the RCD-24-0.70/W/VREF can be used in a redundant or parallel configuration, but RECOM Power Inc recommends using a suitable ORing diode or power switch to ensure that the outputs are not connected in parallel. Additionally, ensure that the devices are synchronized to prevent oscillations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RCD-24-0.70/W/Vref Overview

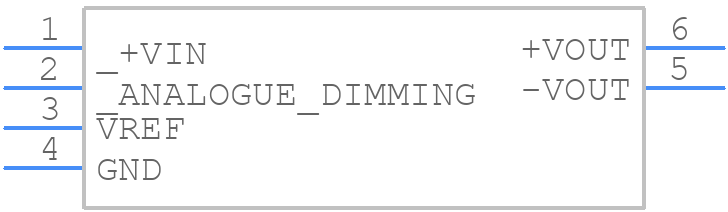

Use the download button to access the RCD-24-0.70/W/Vref schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RCD-2,
or try a keyword search
