RCER71H475K3A2H03B - Murata Electronics

Description: Capacitor L=5.5mm W=5.0mm T=4.0mm ,Multilayer Ceramic Capacitor, 4.7 µF, 50 V, ± 10%, Radial Leaded, X7R, 2.5 mm .

Download RCER71H475K3A2H03B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RCER71H475K3A2H03B - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

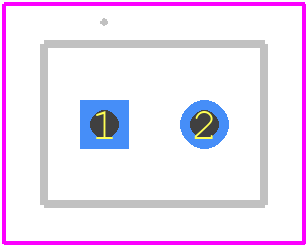

RCER71H475K3A2H03B - Murata Electronics PCB footprint - Other - Other - RCER71H475K3A2H03B
click to zoom
3D Models
RCER71H475K3A2H03B - Murata Electronics - 3D model - Other - RCER71H475K3A2H03B
click to zoom

RCER71H475K3A2H03B Details

  • Manufacturer Part Number:

    RCER71H475K3A2H03B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Capacitance:

    4.7 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    5 mm

  • JESD-609 Code:

    e3

  • Length:

    5.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    null

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    50 V

  • Reference Standard:

    AEC-Q200

  • Size Code:

    2216

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    X7R

  • Temperature Coefficient:

    15% ppm/°C

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    2.5 mm

  • Terminal Shape:

    WIRE

  • Width:

    4 mm

RCER71H475K3A2H03B Frequently Asked Questions (FAQs)

  • The recommended land pattern for the RCER71H475K3A2H03B can be found in Murata's Capacitor Land Pattern document (PDF) or by contacting Murata's technical support.
  • The RCER71H475K3A2H03B is a moisture-sensitive device. It's essential to follow Murata's recommended storage and handling procedures to prevent moisture absorption. Use a dry box or desiccant packaging, and avoid exposing the capacitor to high humidity or temperature environments.
  • While the datasheet provides ESR values at 100 kHz, Murata can provide additional ESR data at higher frequencies (e.g., 1 MHz, 10 MHz) upon request. Contact Murata's technical support for more information.
  • The RCER71H475K3A2H03B is designed to meet the vibration requirements of IEC 60068-2-6, but it's essential to evaluate the capacitor's performance in your specific application. Consult with Murata's technical support to discuss your vibration requirements and determine the capacitor's suitability.
  • Murata provides derating curves for their capacitors in their Capacitor Derating Guide (PDF). The derating curve for the RCER71H475K3A2H03B can be found in this document or by contacting Murata's technical support.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RCER71H475K3A2H03B Overview

Use the download button to access the RCER71H475K3A2H03B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RCER7, or try a keyword search, such as Ceramic Capacitors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
