- Part Number RCJ-012
- Manufacturer Same Sky
- Pin Count 4
- Part Category Connector
- Package Category Other

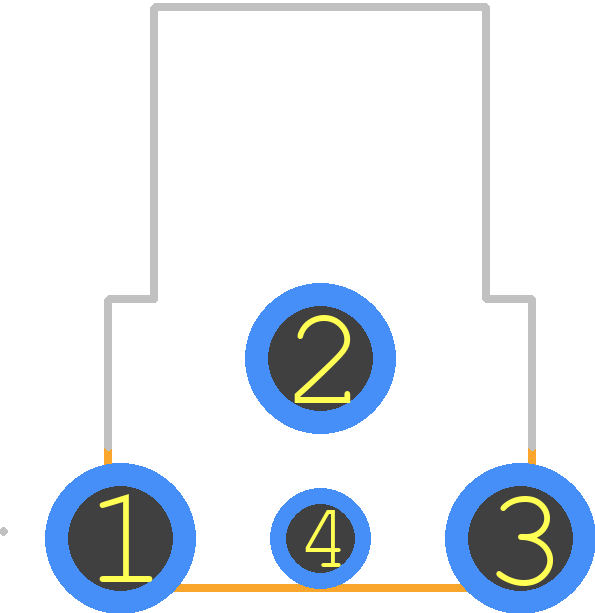

- Footprint Name Other - RCJ-012
- Released Date Dec 11, 2017
- Last Modified Date May 20, 2026 3:53 PM UTC
- Pinout / Pin List Click Here (Member Only)
RCJ-012 Details
-
Manufacturer Part Number:
RCJ-012
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Transferred
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.10
-
Manufacturer:
Same Sky
-
YTEOL:
7.98
-
Audio Type:
PHONO
-
Board Mounting Option:
MOUNTING FLANGE
-
Body Breadth:
0.472 inch
-
Body Depth:
0.571 inch
RCJ-012 Frequently Asked Questions (FAQs)
-
CUI Devices provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper mounting and thermal management.
-
The RCJ-012 has a high power density, so proper thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow the recommended PCB layout and land pattern to minimize thermal resistance.
-
The RCJ-012 has an operating temperature range of -40°C to +125°C, but derating is required above 100°C. Consult the datasheet for specific derating curves and guidelines.
-
The RCJ-012 is designed to withstand moderate vibration, but extreme vibration may affect its performance and reliability. Consider using additional mechanical support or vibration dampening measures if necessary.
-
Follow proper PCB design and layout practices, use shielding if necessary, and ensure that the RCJ-012 is properly decoupled from other components to minimize electromagnetic interference (EMI).
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
RCJ-012 Overview
Use the download button to access the RCJ-012 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RCJ-0,
or try a keyword search, such as Audio/RCA Connectors
