CUI Devices provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper mounting and to prevent thermal and electrical issues.
The RCJ-014 has a high power density, so thermal management is crucial. Ensure good airflow around the component, use a heat sink if necessary, and follow the recommended PCB layout to minimize thermal resistance. You can also consider using thermal interface materials to improve heat transfer.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the RCJ-014 within a temperature range of -20°C to 100°C for optimal performance.
Follow the recommended soldering profile and temperature guidelines to prevent damage to the component. Use a solder with a high melting point, and ensure the PCB is clean and free of oxidation. Use a pick-and-place machine or a skilled operator to ensure proper component placement and alignment.
The RCJ-014 is a sensitive component and requires proper ESD protection during handling and assembly. Use ESD-safe materials, follow proper grounding procedures, and ensure that all personnel handling the component are properly trained and equipped with ESD protection devices.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RCJ-014 Overview

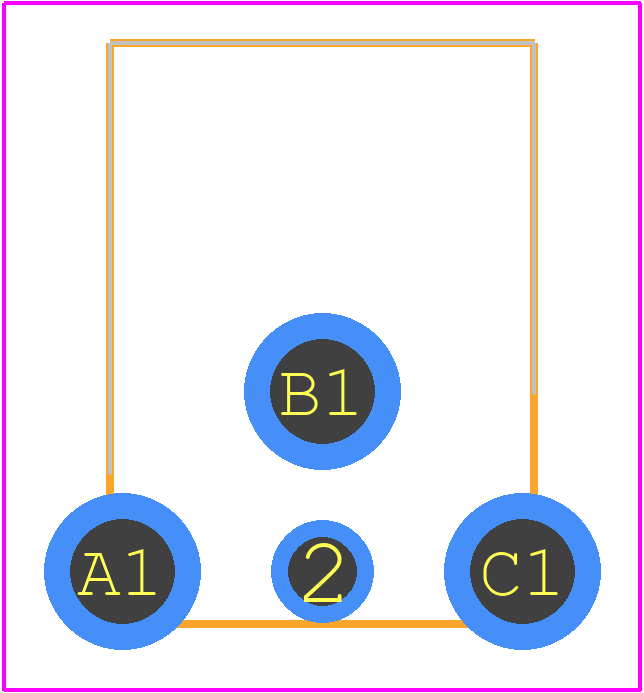

Use the download button to access the RCJ-014 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RCJ-0,
or try a keyword search, such as Audio/RCA Connectors
About Same Sky
CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications.
CUI Devices is headquartered in Lake Oswego, Oregon.
