RCJ-015 footprint, schematic symbol and 3D model by Same Sky

Symbol

click to zoom

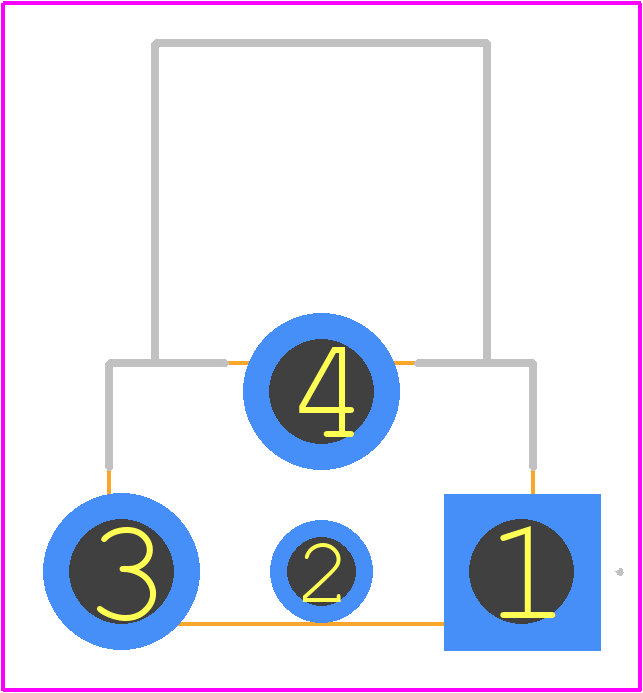

PCB Footprints

RCJ-015 - Same Sky PCB footprint - Other - Other - RCJ-015-1

click to zoom

3D Models

RCJ-015 - Same Sky - 3D model - Other - RCJ-015-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RCJ-015
Part Number RCJ-015
Manufacturer Same Sky
Pin Count 4
Part Category Connector
Package Category Other
Footprint Name Other - RCJ-015-1
Released Date Jun 22, 2026
Last Modified Date Jun 22, 2026 8:43 AM UTC
Pinout / Pin List Click Here (Member Only)

RCJ-015 Details

Manufacturer Part Number:
RCJ-015
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Manufacturer:
Same Sky
YTEOL:
7.98
Audio Type:
PHONO
Board Mounting Option:
MOUNTING FLANGE
Body Breadth:
0.472 inch
Body Depth:
0.571 inch
Body Diameter:
0.327 inch
Body Length:
0.417 inch
Body/Shell Style:
JACK
Configuration:
1X1 HORIZONTAL
Connector Type:
RCA
Contact Finish Mating:
NOT APPLICABLE
Contact Finish Termination:
Tin (Sn)
Contact Gender:
FEMALE
Contact Material:
BRASS
Contact Resistance:
30 mΩ
Contact Style:
RND PIN-SKT
Dielectric Withstanding Voltage:
700VAC V
Durability:
5000 Cycles
Insulation Resistance:
100000000 Ω
Insulator Color:
BLUE
Insulator Material:
POLYAMIDE9T
JESD-609 Code:
e3
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Poles:
2
Number of Ports:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Polarization Key:
POLARIZED HOUSING
Shell Finish:
TIN
Shell Material:
STEEL
Terminal Length:
0.156 inch
Termination Type:
SOLDER

RCJ-015 Frequently Asked Questions (FAQs)

The recommended storage condition for the RCJ-015 is in a dry, cool place with a temperature range of -20°C to 40°C and humidity below 80%. This helps prevent damage to the component and ensures optimal performance.
Yes, the RCJ-015 is designed to withstand high-vibration environments. However, it's essential to ensure proper mounting and secure the component to prevent mechanical stress and damage.
The maximum operating temperature range for the RCJ-015 is -40°C to 125°C. Operating the component outside this range may affect its performance, reliability, and lifespan.
Yes, the RCJ-015 is compatible with lead-free soldering processes. However, it's crucial to follow the recommended soldering profile and temperature guidelines to ensure reliable connections and prevent damage to the component.
The recommended cleaning method for the RCJ-015 is to use a soft brush and a mild detergent solution. Avoid using harsh chemicals, abrasive materials, or high-pressure cleaning methods, as they may damage the component's surface or compromise its performance.
