RCJ-042 - Same Sky

Description: Metal Right-Angle, RCA Jack, Red Housing and Insulation

Download RCJ-042 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RCJ-042 - Same Sky - PCB symbol
click to zoom
PCB Footprints

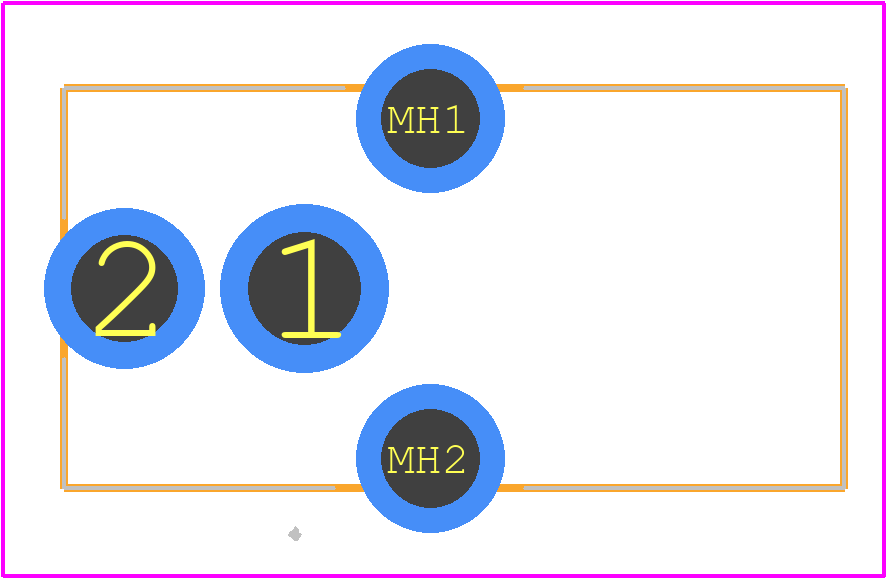

RCJ-042 - Same Sky PCB footprint - Other - Other - RCJ-042-2
click to zoom
3D Models
RCJ-042 - Same Sky - 3D model - Other - RCJ-042-2
click to zoom

RCJ-042 Details

  • Manufacturer Part Number:

    RCJ-042

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Same Sky

  • YTEOL:

    7.98

  • Audio Type:

    PHONO

  • Board Mounting Option:

    MOUNTING FLANGE

  • Body Breadth:

    0.512 inch

  • Body Depth:

    0.768 inch

  • Body Diameter:

    0.327 inch

  • Body Length:

    0.394 inch

  • Body/Shell Style:

    JACK

  • Configuration:

    1X2 HORIZONTAL

  • Connector Type:

    RCA

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Poles:

    2

  • Number of Ports:

    1

  • Option:

    GENERAL PURPOSE

  • Polarization Key:

    POLARIZED HOUSING

  • Termination Type:

    SOLDER

RCJ-042 Frequently Asked Questions (FAQs)

  • CUI Devices provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper mounting and thermal management.
  • The RCJ-042 has a high power density, so proper thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow the recommended PCB layout to minimize thermal resistance.
  • While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Consult with CUI Devices or a thermal expert for specific guidance.
  • The RCJ-042 is designed to withstand moderate vibrations, but extreme vibrations may affect its performance and reliability. Consult with CUI Devices or a mechanical engineer to assess the suitability of the device for your specific application.
  • Follow proper PCB design and layout practices, use shielding if necessary, and ensure that the device is properly grounded to minimize electromagnetic interference (EMI). Consult with an EMC expert if you're unsure.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RCJ-042 Overview

Use the download button to access the RCJ-042 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RCJ-0, or try a keyword search, such as Audio/RCA Connectors

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
