RCJ-2233 - Same Sky

Description: RCJ-22 Series - 2-Port, Right-Angle, RCA Jack, Vertical

Download RCJ-2233 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RCJ-2233 - Same Sky - PCB symbol
click to zoom
PCB Footprints

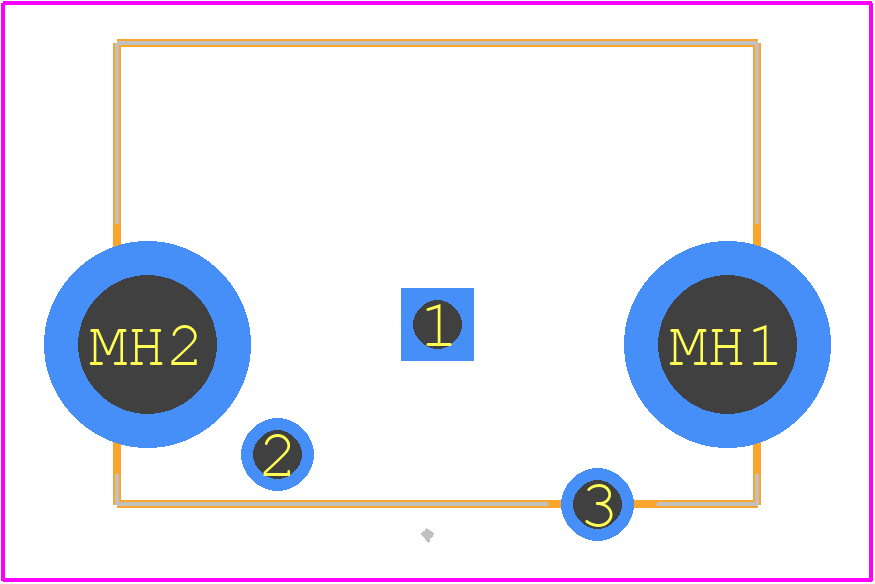

RCJ-2233 - Same Sky PCB footprint - Other - Other - RCJ-2233-1
click to zoom
3D Models
RCJ-2233 - Same Sky - 3D model - Other - RCJ-2233-1
click to zoom

RCJ-2233 Details

  • Manufacturer Part Number:

    RCJ-2233

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Same Sky

  • YTEOL:

    7.5

  • Audio Type:

    PHONO

  • Board Mounting Option:

    SOLDER HOLDING POSTS

  • Body Breadth:

    1.079 inch

  • Body Depth:

    0.453 inch

  • Body Length:

    0.661 inch

  • Body/Shell Style:

    JACK

  • Configuration:

    1X2 HORIZONTAL

  • Connector Type:

    RCA

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    BRASS

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    707VAC V

  • Durability:

    5000 Cycles

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    ACRYLONITRILE BUTADIENE STYRENE

  • JESD-609 Code:

    e3

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Poles:

    3

  • Number of Ports:

    2

  • Option:

    GENERAL PURPOSE

  • Polarization Key:

    POLARIZED KEY

  • Rated Current (Signal):

    5 A

  • Terminal Length:

    0.197 inch

  • Termination Type:

    SOLDER

RCJ-2233 Frequently Asked Questions (FAQs)

  • The recommended storage temperature for the RCJ-2233 is -40°C to 125°C, as specified by Same Sky. This ensures the component's reliability and performance.
  • Yes, the RCJ-2233 is designed to withstand high-vibration environments. Same Sky recommends following the specified vibration testing protocol to ensure the component's reliability in such conditions.
  • The maximum operating frequency for the RCJ-2233 is 3 GHz, as specified in the datasheet. However, Same Sky recommends consulting their application notes for specific frequency-related design considerations.
  • Yes, the RCJ-2233 is compatible with lead-free soldering processes. Same Sky recommends following the specified soldering temperature profile to ensure reliable assembly.
  • The typical power dissipation for the RCJ-2233 is 250 mW, as specified in the datasheet. However, Same Sky recommends consulting their thermal management guidelines for specific design considerations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RCJ-2233 Overview

Use the download button to access the RCJ-2233 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RCJ-2, or try a keyword search, such as Audio/RCA Connectors
