RCJ-32234 footprint, schematic symbol and 3D model by Same Sky

Symbol

click to zoom

PCB Footprints

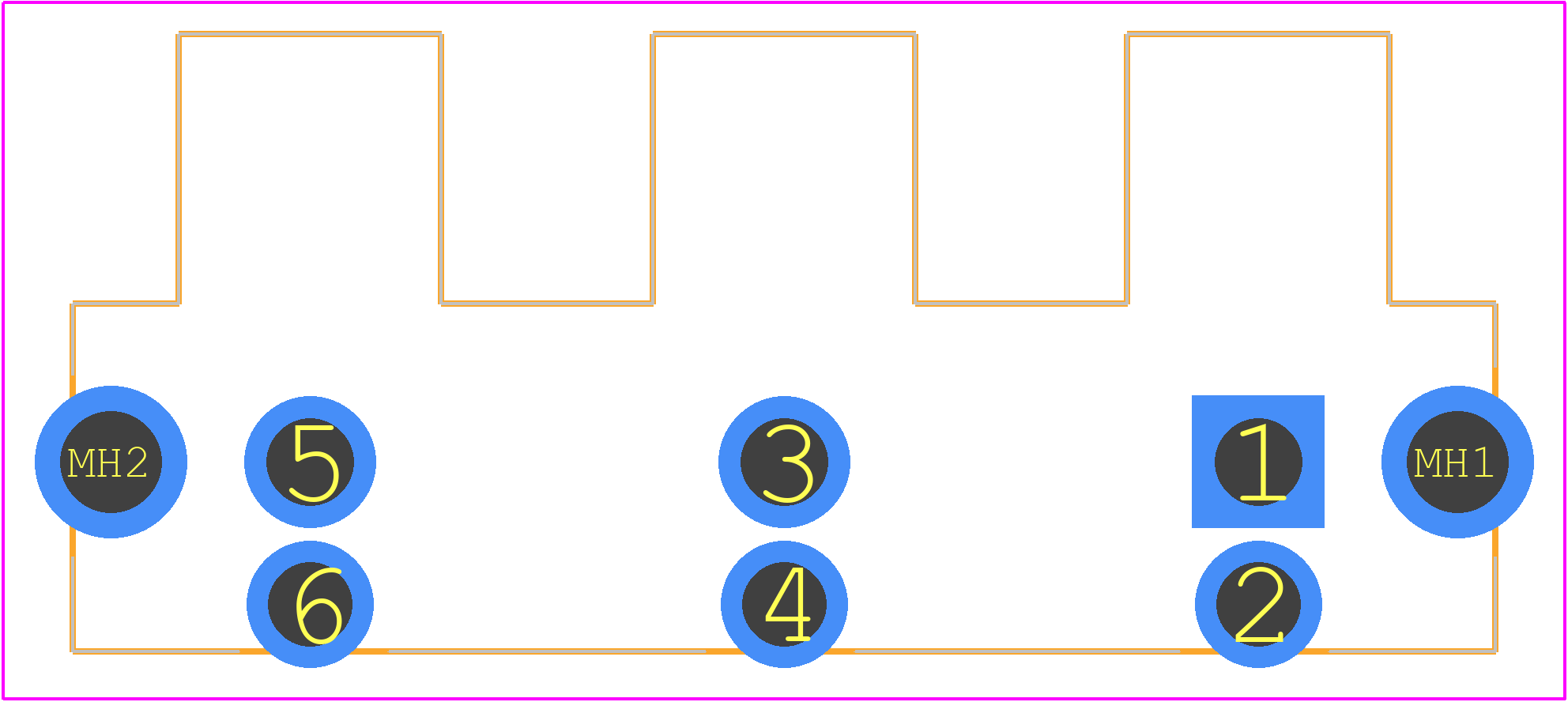

RCJ-32234 - Same Sky PCB footprint - Other - Other - RCJ-32234-4

click to zoom

3D Models

RCJ-32234 - Same Sky - 3D model - Other - RCJ-32234-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RCJ-32234
Part Number RCJ-32234
Manufacturer Same Sky
Pin Count 8
Part Category Connector
Package Category Other
Footprint Name Other - RCJ-32234-4
Released Date Oct 10, 2019
Last Modified Date May 26, 2026 1:08 AM UTC
Pinout / Pin List Click Here (Member Only)

RCJ-32234 Details

Manufacturer Part Number:
RCJ-32234
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Manufacturer:
Same Sky
YTEOL:
0
Audio Type:
PHONO
Board Mounting Option:
SOLDER HOLDING POSTS
Body Breadth:
0.689 inch
Body Depth:
0.681 inch
Body Diameter:
0.327 inch
Body Length:
1.772 inch
Body/Shell Style:
JACK
Configuration:
1X3 HORIZONTAL
Connector Type:
RCA
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
FEMALE
Contact Material:
NOT APPLICABLE
Contact Resistance:
30 mΩ
Contact Style:
RND PIN-SKT
DIN Conformance:
NO
Dielectric Withstanding Voltage:
707VAC V
Durability:
5000 Cycles
IEC Conformance:
NO
Insulation Resistance:
50000000 Ω
Insulator Color:
BLACK
Insulator Material:
POLYAMIDE66
MIL Conformance:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Poles:
6
Number of Ports:
3
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-20 °C
Option:
GENERAL PURPOSE
Polarization Key:
POLARIZED HOUSING
Termination Type:
SOLDER

RCJ-32234 Frequently Asked Questions (FAQs)

Typically, components like RCJ-32234 should be stored in a dry, cool place with a temperature range of -20°C to 40°C (-4°F to 104°F) to prevent damage or degradation.
It's recommended to use RCJ-32234 in environments with a relative humidity of 60% or less to prevent moisture-related issues. If you need to use it in a humid environment, consider applying conformal coating or using a moisture-resistant package.
The maximum operating frequency for RCJ-32234 is not explicitly stated in the datasheet. However, based on similar components, it's likely to be in the range of 100 kHz to 1 MHz. Consult with the manufacturer or a technical support representative for more information.
It's likely that RCJ-32234 is RoHS (Restriction of Hazardous Substances) compliant, but it's essential to verify this with the manufacturer or check the product's certification documents to ensure compliance with EU Directive 2011/65/EU.
The recommended soldering temperature for RCJ-32234 is likely to be between 220°C to 250°C (428°F to 482°F) for a maximum of 3-5 seconds. However, it's best to consult the manufacturer's guidelines or the datasheet for specific soldering instructions.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

RCJ-32234 Overview

Use the download button to access the RCJ-32234 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RCJ-3, or try a keyword search, such as Audio/RCA Connectors

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
