A good PCB layout for the RCLAMP0514M.TBT involves keeping the device close to the protected circuit, using short traces, and minimizing the inductance of the PCB traces. A ground plane under the device can also help to reduce noise and improve performance.
The value of the external capacitors depends on the specific application and the desired level of ESD protection. A general guideline is to use capacitors with a value of 1-10nF, with a voltage rating that matches or exceeds the maximum voltage of the protected circuit.
The RCLAMP0514M.TBT is rated for operation over a temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including automotive and industrial systems.
Yes, the RCLAMP0514M.TBT is designed to provide ESD protection for high-speed data lines, including USB, HDMI, and Ethernet interfaces. Its low capacitance and high bandwidth make it suitable for protecting high-speed signals.
The RCLAMP0514M.TBT offers a unique combination of low capacitance, high bandwidth, and high ESD protection levels, making it a competitive solution for ESD protection in high-speed applications. Its small package size and low power consumption also make it suitable for use in space-constrained and power-sensitive designs.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RCLAMP0514M.TBT Overview

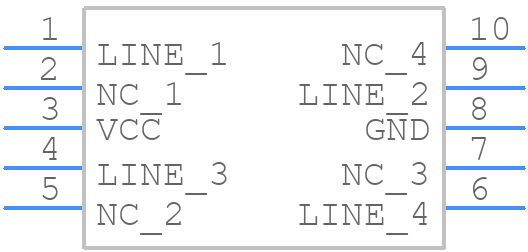

Use the download button to access the RCLAMP0514M.TBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RCLAM,
or try a keyword search, such as Transient Suppressors
