A good PCB layout for RCLAMP0518P.TNT involves keeping the device close to the protected circuit, using short traces, and minimizing the inductance of the PCB. It's also recommended to use a solid ground plane and to keep the device away from high-frequency signals.
To choose the correct TVS diode, consider the maximum voltage and current of your circuit, as well as the type of transient protection required (e.g., ESD, lightning, etc.). RCLAMP0518P.TNT is suitable for high-speed data lines and can handle up to 18V and 5A.
TVS diodes, like RCLAMP0518P.TNT, are designed to protect against high-energy transients and can handle high peak pulse currents. Zener diodes, on the other hand, are designed for voltage regulation and are not suitable for transient protection.
Yes, RCLAMP0518P.TNT can be used for both 1.8V and 3.3V applications, as it has a working voltage range of 0-5.5V. However, ensure that the device is properly biased and that the maximum voltage rating is not exceeded.
RCLAMP0518P.TNT is designed to provide ESD protection up to ±30kV contact discharge and ±30kV air discharge, exceeding the IEC 61000-4-2 standard. It can safely absorb ESD events and protect sensitive circuits.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RCLAMP0518P.TNT Overview

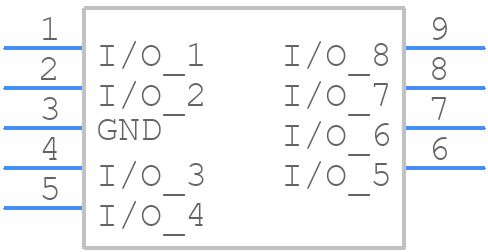

Use the download button to access the RCLAMP0518P.TNT schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like RCLAM,
or try a keyword search, such as Transient Suppressors
