A good PCB layout for the RCLAMP3328P.TZT involves keeping the device close to the protected circuit, using short traces, and minimizing the inductance of the PCB traces. It's also recommended to use a solid ground plane and to keep the device away from noise sources.
The value of the external capacitor (C1) depends on the specific application and the desired level of ESD protection. A general guideline is to use a capacitor with a value between 1nF to 10nF. A larger capacitor value provides better ESD protection but increases the circuit's capacitance and may affect the signal integrity.
The RCLAMP3328P.TZT is rated for operation from -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within the specified temperature range for optimal performance and reliability.
Yes, the RCLAMP3328P.TZT is suitable for ESD protection in high-speed data lines. The device's low capacitance and high bandwidth make it suitable for protecting high-speed signals up to 10 Gbps. However, it's essential to follow proper PCB layout and design guidelines to minimize signal degradation and ensure optimal performance.
To ensure proper soldering of the RCLAMP3328P.TZT, follow the recommended soldering profile and use a solder with a melting point below 260°C. Apply a small amount of solder paste to the PCB pads, and use a reflow oven or a hot air gun to solder the device. Avoid overheating the device or the PCB, and ensure the solder joints are clean and free of oxidation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RCLAMP3328P.TZT Overview

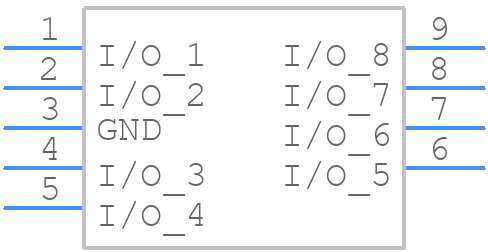

Use the download button to access the RCLAMP3328P.TZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RCLAM,
or try a keyword search, such as Transient Suppressors
