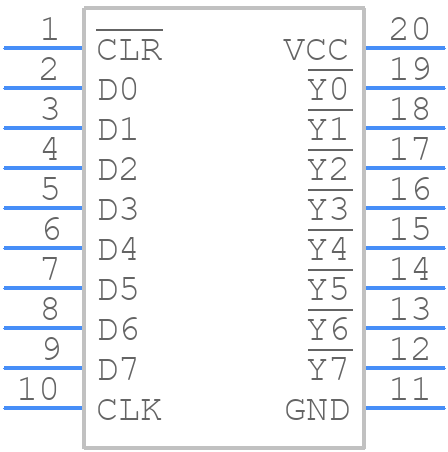

RD15LD74APT0 - Renesas Electronics

RD15LD74APT0 Details

• Manufacturer Part Number:

  RD15LD74APT0

• Part Life Cycle Code:

  Transferred

• Part Package Code:

  DIP

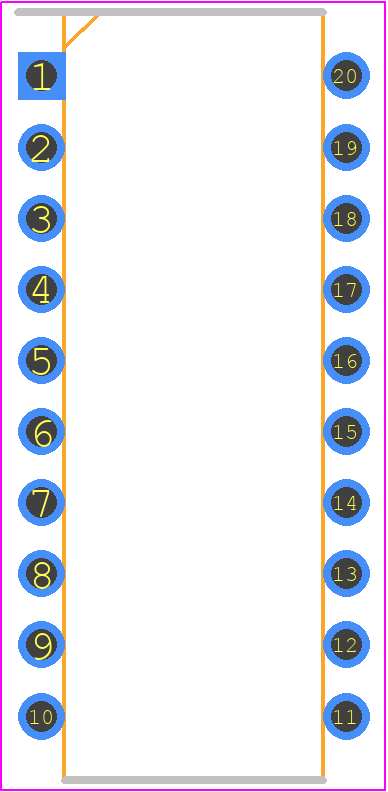

• Package Description:

  DIP-20

• Pin Count:

  20

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Renesas Electronics Corporation

• JESD-30 Code:

  R-PDIP-T20

• Load Capacitance (CL):

  30 pF

• Logic IC Type:

  LOGIC CIRCUIT

• Max Frequency@Nom-Sup:

  15000000 Hz

• Max I(ol):

  0.1 A

• Moisture Sensitivity Level:

  1

• Number of Functions:

  8

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SDIP

• Package Equivalence Code:

  SDIP20,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Prop. Delay@Nom-Sup:

  65 ns

• Qualification Status:

  Not Qualified

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  OTHER

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  1.78 mm

• Terminal Position:

  DUAL

• Trigger Type:

  POSITIVE EDGE
