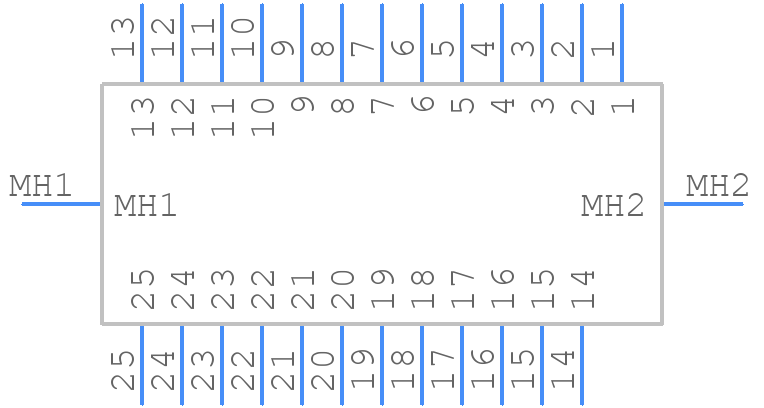

Symbol

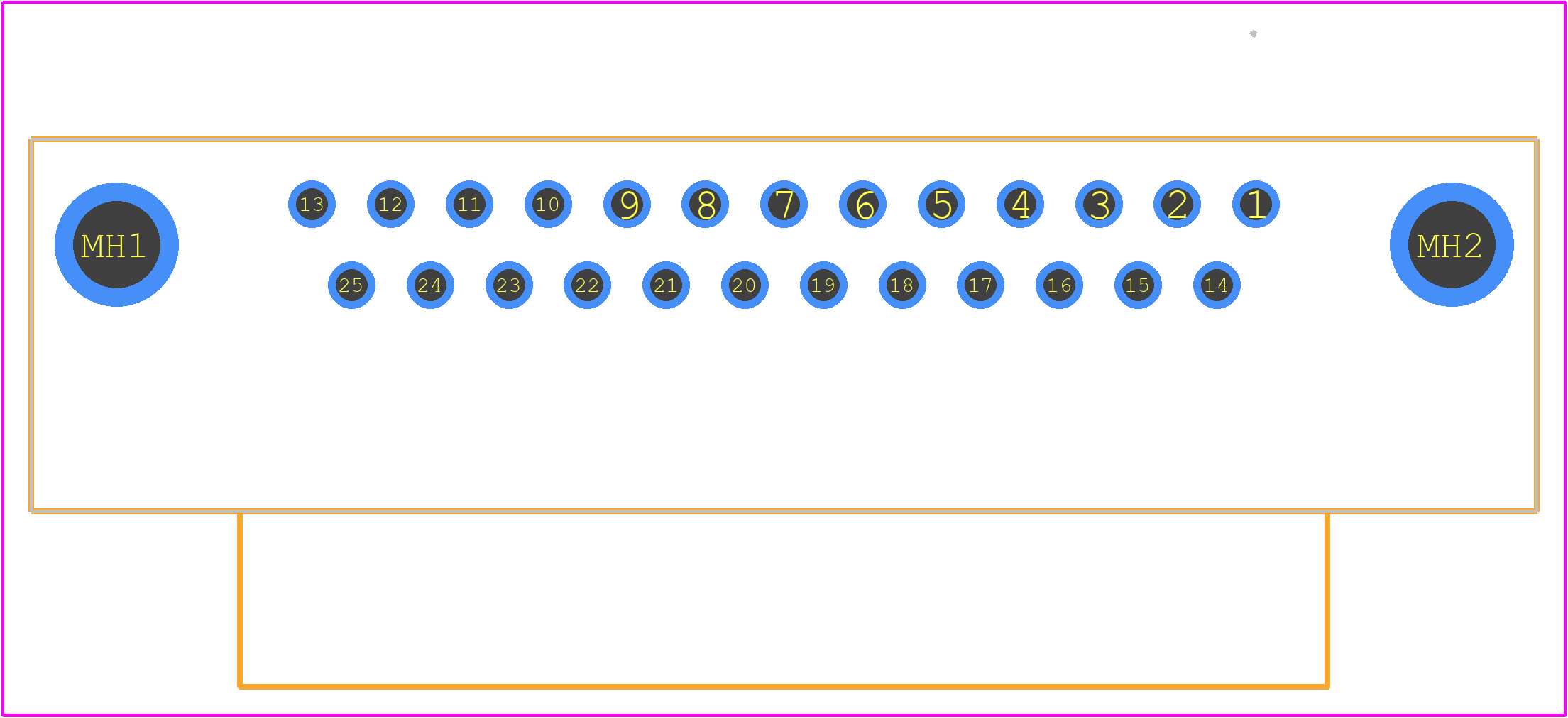

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for RDBD-25SA-LNA(55)
- Part Number RDBD-25SA-LNA(55)
- Manufacturer Hirose
- Pin Count 27
- Part Category Connector
- Package Category Other
- Footprint Name Other - RDBD-25SA-LNA(55)
- Released Date Apr 15, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RDBD-25SA-LNA(55) Details
-
Manufacturer Part Number:
RDBD-25SA-LNA(55)
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
Hirose Electric Co Ltd
-
YTEOL:
0
-
Connector Type:
D SUBMINIATURE CONNECTOR
-
Contact Finish Termination:
Gold (Au)
-
JESD-609 Code:
e4
Trust Checks
Expert Contribution
System Verified
Community Approved
RDBD-25SA-LNA(55) Overview
Use the download button to access the RDBD-25SA-LNA(55) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like RDBD-,
or try a keyword search, such as D Type Connectors
