RDBD-25SE-LNA(55) footprint, schematic symbol and 3D model by Hirose

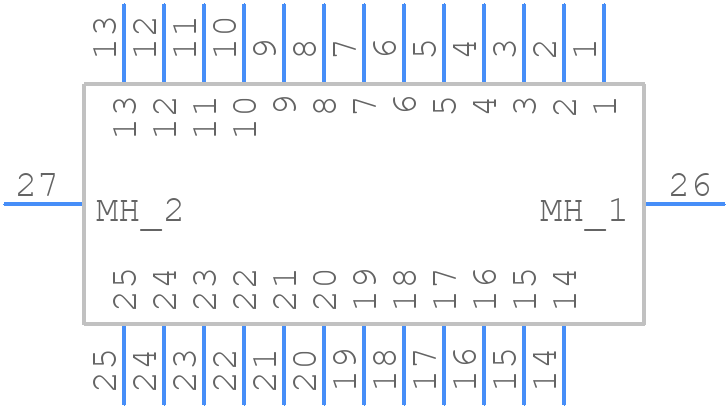

Symbol

click to zoom

PCB Footprints

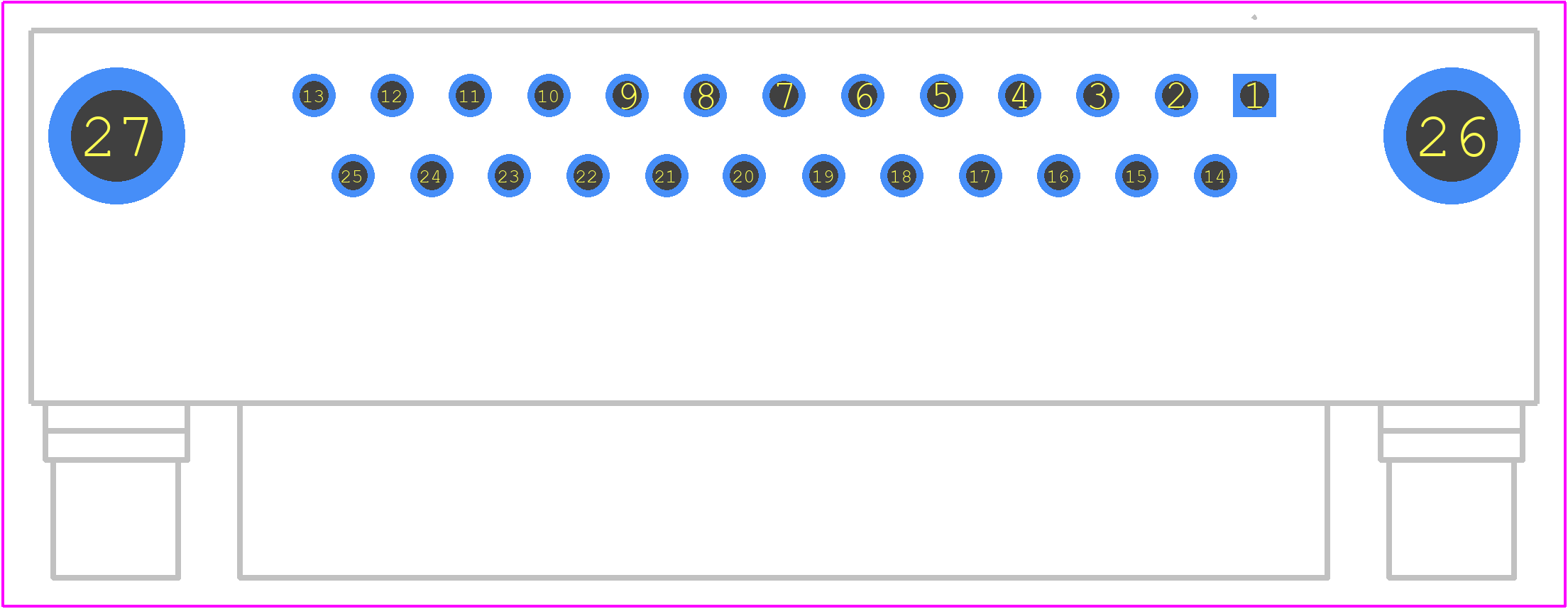

RDBD-25SE-LNA(55) - Hirose PCB footprint - Other - Other - RDBD-25SE-LNA(55)-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RDBD-25SE-LNA(55)
Part Number RDBD-25SE-LNA(55)
Manufacturer Hirose
Pin Count 27
Part Category Connector
Package Category Other
Footprint Name Other - RDBD-25SE-LNA(55)-2
Released Date Aug 7, 2025
Last Modified Date Aug 7, 2025 10:34 PM UTC
Pinout / Pin List Click Here (Member Only)

RDBD-25SE-LNA(55) Details

Manufacturer Part Number:
RDBD-25SE-LNA(55)
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
12 Weeks
Manufacturer:
Hirose Electric Co Ltd
Connector Type:
D SUBMINIATURE CONNECTOR

RDBD-25SE-LNA(55) Frequently Asked Questions (FAQs)

The recommended torque for screw locking is 0.5 N·m to 1.5 N·m (5 gf·cm to 15 gf·cm).
Yes, the connector is designed to withstand vibrations up to 10 Hz to 2,000 Hz, 10 G acceleration.
The operating temperature range is -40°C to 85°C (-40°F to 185°F).
Yes, the connector is sealed to IP67 rating, making it suitable for outdoor applications with protection against dust and water ingress.
The mating cycle life is 500 cycles minimum.

Trust Checks

Community Provided

System Verified

Community Approved

RDBD-25SE-LNA(55) Overview

Use the download button to access the RDBD-25SE-LNA(55) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like RDBD-, or try a keyword search, such as D Type Connectors
