RDCD-37SA-LN(55) - Hirose

Description: D-Sub Connector (Right-Angle Board-Mounted Type), RD*D Series, 37 pins, through hole, 3A, -55°C to 85°C

Download RDCD-37SA-LN(55) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

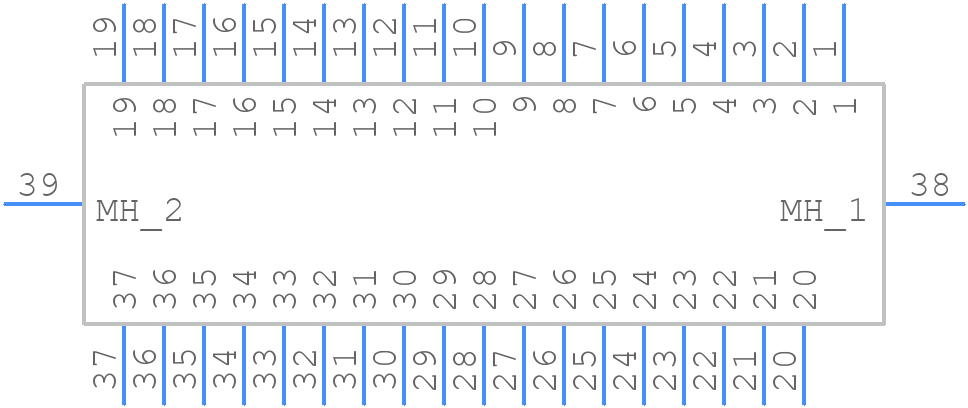

RDCD-37SA-LN(55) - Hirose - PCB symbol
click to zoom
PCB Footprints

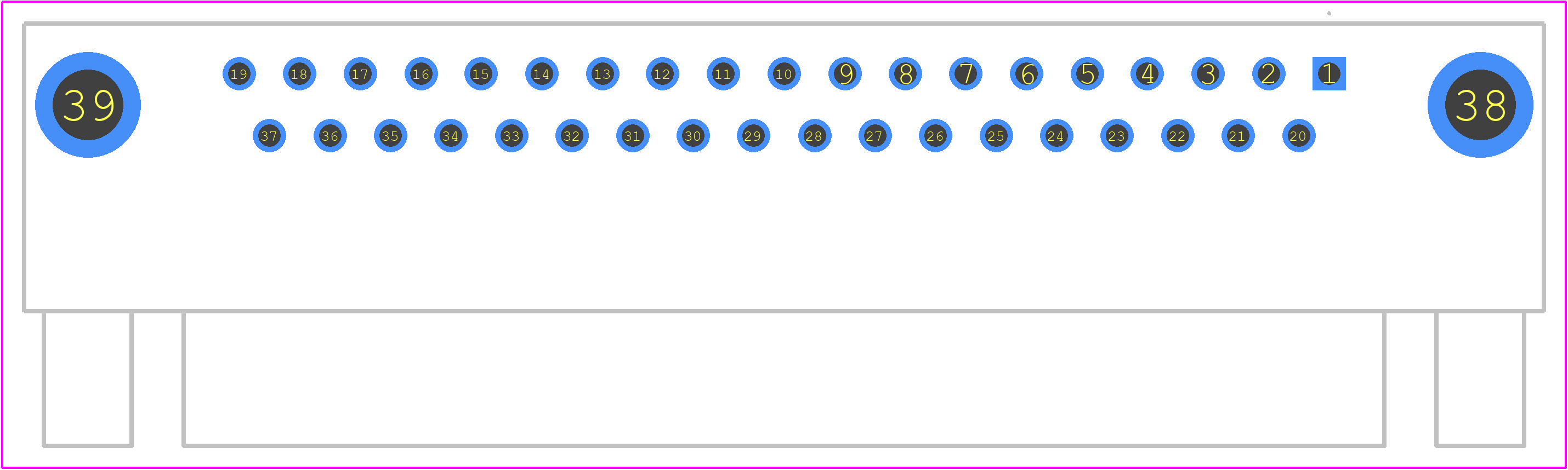

RDCD-37SA-LN(55) - Hirose PCB footprint - Other - Other - RDCD-37SA-LN(55)-2
click to zoom

RDCD-37SA-LN(55) Details

  • Manufacturer Part Number:

    RDCD-37SA-LN(55)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RDCD-37SA-LN(55) Overview

Use the download button to access the RDCD-37SA-LN(55) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like RDCD-, or try a keyword search, such as D Type Connectors
