Symbol

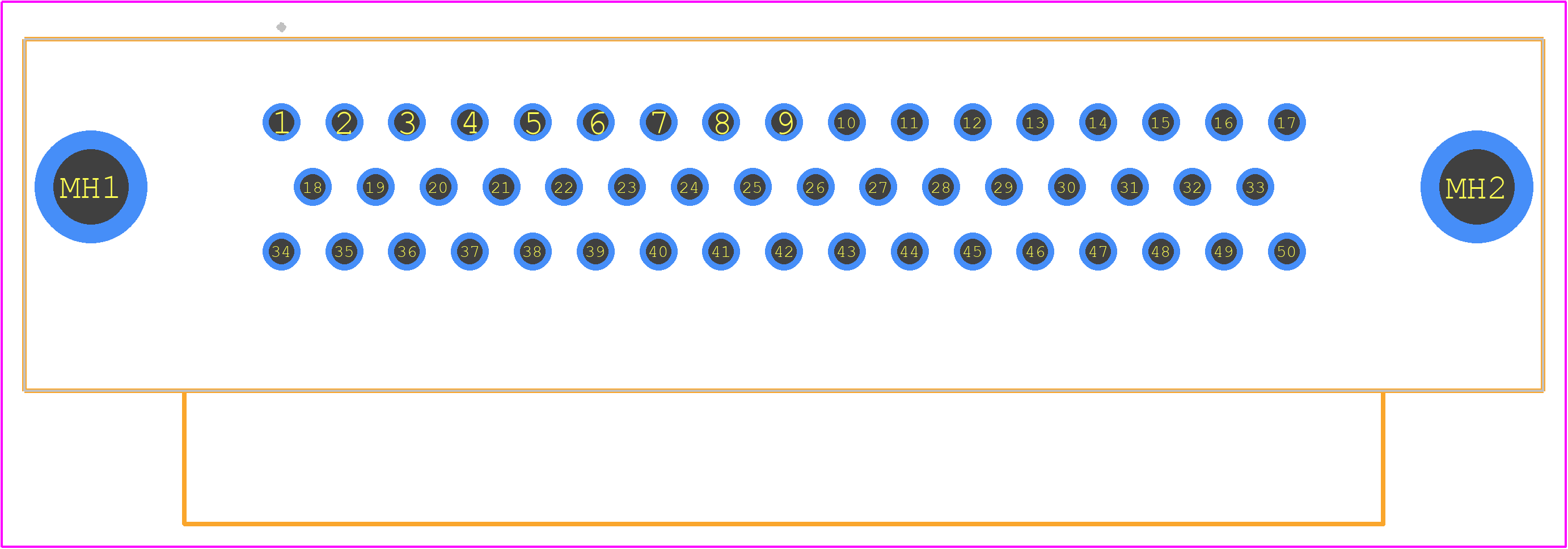

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for RDDB-50P(05)
- Part Number RDDB-50P(05)
- Manufacturer Hirose
- Pin Count 52
- Part Category Connector
- Package Category Other
- Footprint Name Other - RDDB-50P
- Released Date Oct 28, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RDDB-50P(05) Details
-
Manufacturer Part Number:
RDDB-50P(05)
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
Hirose Electric Co Ltd
-
Connector Type:
D SUBMINIATURE CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
-
Contact Finish Termination:
Gold (Au)
-
Contact Gender:
MALE
RDDB-50P(05) Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m (0.36 lbf·in to 1.07 lbf·in). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the RDDB-50P(05) connector is designed to withstand vibrations. It has a rugged construction and a secure screw-terminal design, making it suitable for use in applications with moderate to high vibrations. However, it's essential to follow the recommended torque and installation guidelines to ensure reliable connections.
-
The operating temperature range of the RDDB-50P(05) connector is -40°C to 105°C (-40°F to 221°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
-
The RDDB-50P(05) connector is designed for indoor use, but it can be used outdoors with proper protection. It's essential to use a suitable sealant or gasket to prevent moisture ingress and ensure the connector's reliability in outdoor environments.
-
The RDDB-50P(05) connector is designed to operate in environments with relative humidity up to 80%. However, it's essential to take precautions to prevent moisture ingress, such as using a suitable sealant or gasket, to ensure the connector's reliability in high-humidity environments.
Trust Checks
Expert Contribution
System Verified
Community Approved
RDDB-50P(05) Overview
Use the download button to access the RDDB-50P(05) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like RDDB-,
or try a keyword search, such as D Type Connectors
