RDE20110S15 - XP POWER

RDE20110S15 Details

• Manufacturer Part Number:

  RDE20110S15

• Rohs Code:

  Yes

• Part Life Cycle Code:

  End Of Life

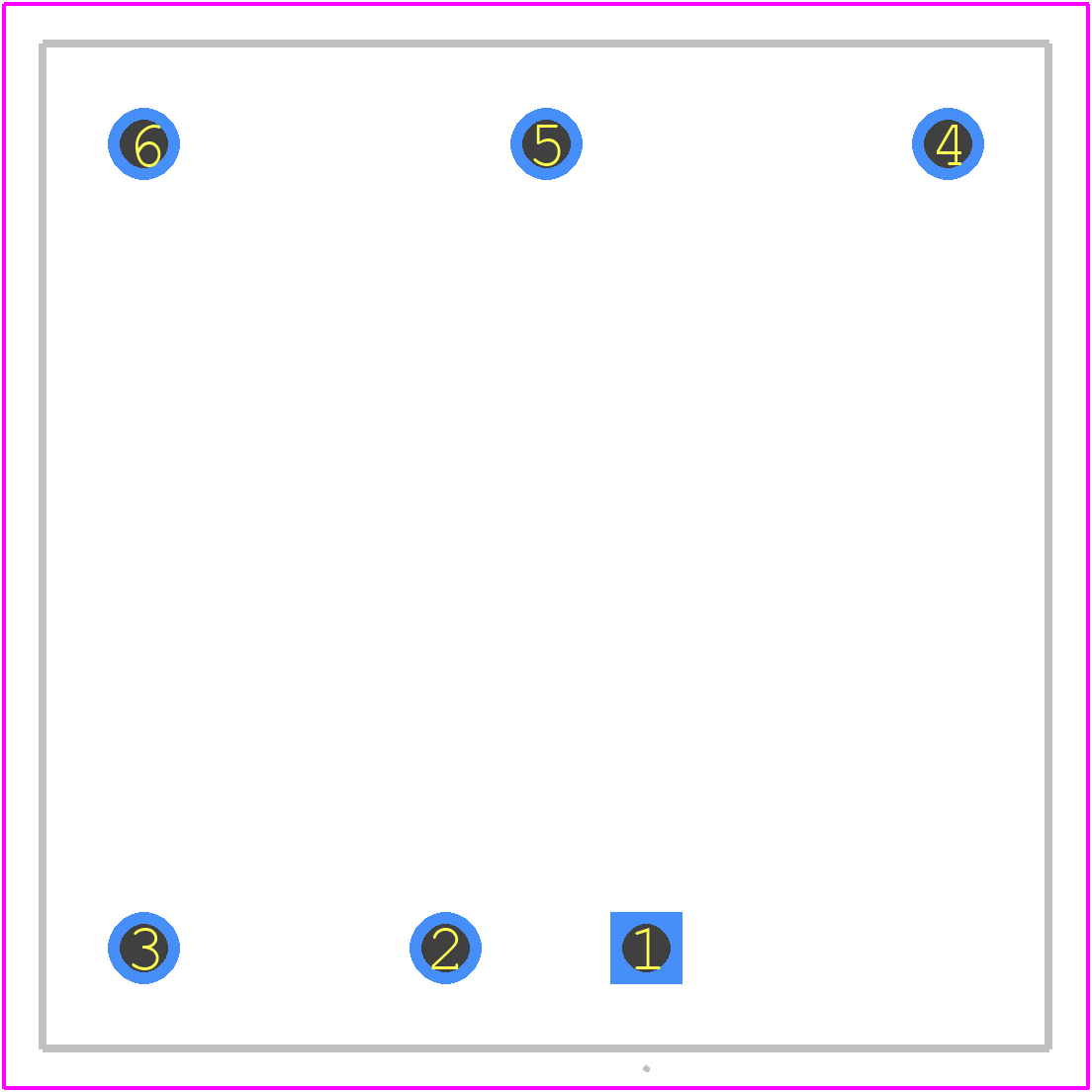

• Package Description:

  PACKAGE-6

• ECCN Code:

  EAR99

• Date Of Intro:

  2019-01-17

• Manufacturer:

  XP Power

• YTEOL:

  0

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CE, EN, UKCA, UL

• Efficiency (Main Output):

  86%

• Input Voltage-Max:

  176 V

• Input Voltage-Min:

  42 V

• Input Voltage-Nom:

  72 V

• JESD-30 Code:

  S-PDMA-P6

• Length:

  25.4 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  0.5%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  6

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  1.33 A

• Output Voltage-Max:

  16.5 V

• Output Voltage-Min:

  13.5 V

• Output Voltage-Nom:

  15 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DMA

• Package Equivalence Code:

  MODULE,6LEAD,.8

• Package Shape:

  SQUARE

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  260

• Protections:

  OVER VOLTAGE, SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.026 Vrms

• Screening Level:

  EN 62368-1

• Seated Height-Max:

  10.4 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  10

• Total Power Output-Max:

  20 W

• Trim/Adjustable Output:

  YES

• Width:

  25.4 mm
