- Part Number RDED-9S(55)
- Manufacturer Hirose
- Pin Count 11
- Part Category Connector
- Package Category Other
- Footprint Name Other - RDED-9S(55)-1
- Released Date Jan 11, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RDED-9S(55) Details
-
Manufacturer Part Number:
RDED-9S(55)
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
Hirose Electric Co Ltd
-
Connector Type:
D SUBMINIATURE CONNECTOR
RDED-9S(55) Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5 N·m to 1.0 N·m (0.36 lbf·in to 0.72 lbf·in).
-
Yes, the RDED-9S(55) is designed to withstand vibrations up to 10 Hz to 2000 Hz, 10 G acceleration (half-sine wave, 11 ms duration).
-
The operating temperature range for the RDED-9S(55) is -40°C to 105°C (-40°F to 221°F).
-
Yes, the RDED-9S(55) is compatible with lead-free soldering, with a peak reflow temperature of 260°C (500°F).
-
The recommended wire size for the screw terminals is AWG 24 to AWG 20 (0.2 mm² to 0.5 mm²).
Trust Checks
Expert Contribution
System Verified
Community Approved
RDED-9S(55) Overview

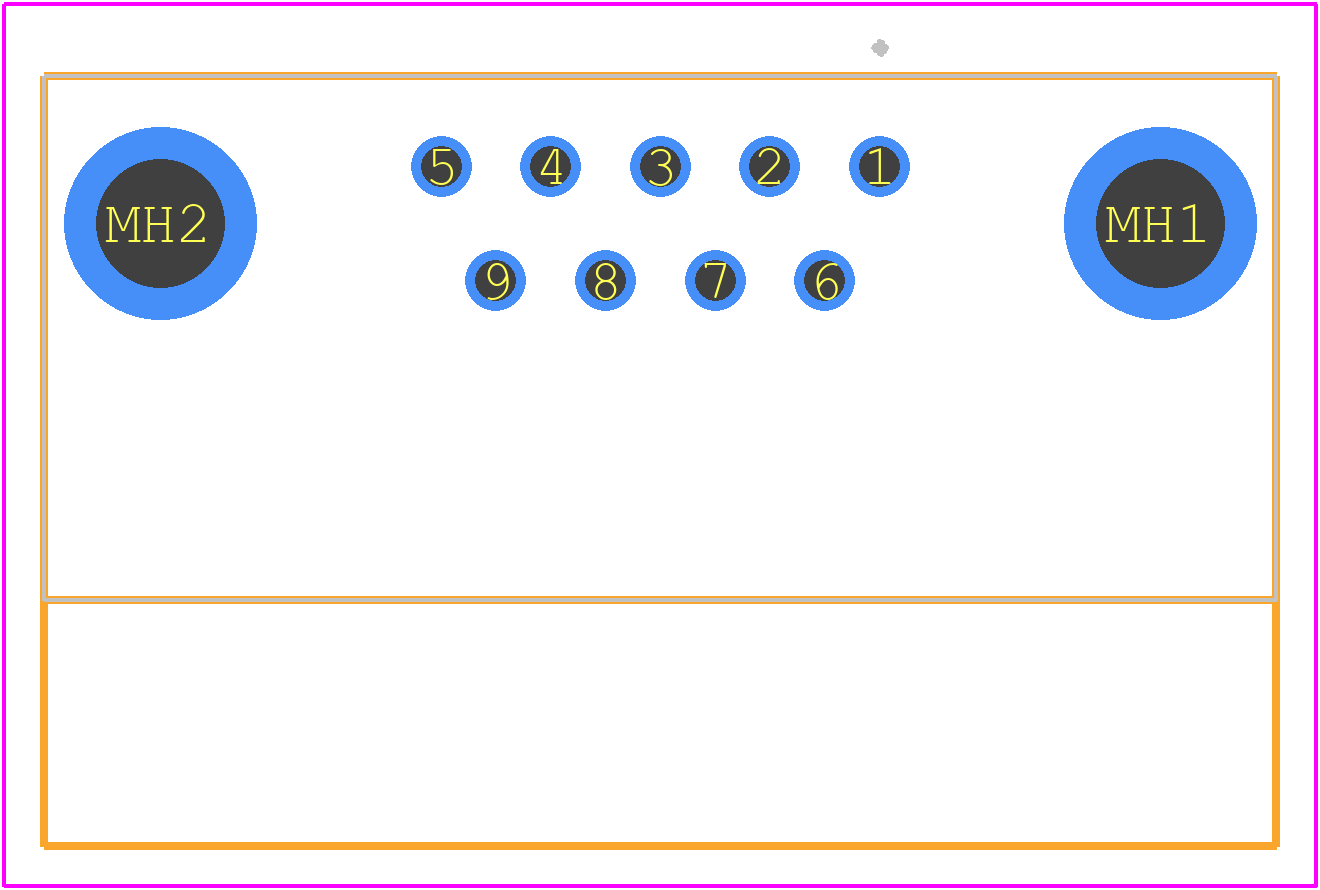

Use the download button to access the RDED-9S(55) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RDED-,
or try a keyword search, such as D Type Connectors
