RDER73A472K2M1H03A - Murata Electronics

Description: MURATA - RDER73A472K2M1H03A - CAP, 4700PF, 1KV, MLCC, RADIAL , -55℃ to 125℃

Download RDER73A472K2M1H03A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RDER73A472K2M1H03A - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

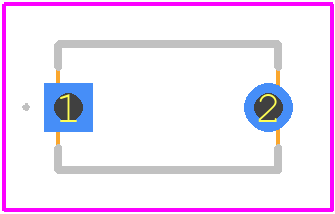

RDER73A472K2M1H03A - Murata Electronics PCB footprint - Other - Other - RDER73A472K2M1H03A
click to zoom
3D Models
RDER73A472K2M1H03A - Murata Electronics - 3D model - Other - RDER73A472K2M1H03A
click to zoom

RDER73A472K2M1H03A Details

  • Manufacturer Part Number:

    RDER73A472K2M1H03A

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Capacitance:

    0.0047 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    4 mm

  • JESD-609 Code:

    e3

  • Length:

    5.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    null

  • Packing Method:

    AMMO PACK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    1000 V

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    X7R

  • Temperature Coefficient:

    15% ppm/°C

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE

  • Width:

    3.15 mm

RDER73A472K2M1H03A Frequently Asked Questions (FAQs)

  • The recommended land pattern for the RDER73A472K2M1H03A capacitor is a rectangular pad with a size of 3.2mm x 1.6mm, with a solder mask clearance of 0.2mm.
  • To prevent damage, handle the capacitor by the body, avoid touching the terminals, and use an anti-static wrist strap or mat during assembly.
  • The maximum voltage derating for the RDER73A472K2M1H03A capacitor is 80% of the rated voltage, which is 472V in this case, so the maximum voltage derating is 377.6V.
  • The RDER73A472K2M1H03A capacitor is rated for operation up to 125°C, but it's recommended to derate the voltage and current ratings according to the temperature derating curve provided in the datasheet.
  • Store the capacitor in a cool, dry place, away from direct sunlight and moisture, and avoid stacking or compressing the capacitors during storage.
