RDER73A682K2K1H03B - Murata Electronics

Description: 6800 pF ±10% 1000V (1kV) Ceramic Capacitor X7R Radial Capacitor L=5.5mm W=4.0mm W1=6.0mm T=3.15mm

Download RDER73A682K2K1H03B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RDER73A682K2K1H03B - Murata Electronics - PCB symbol
click to zoom

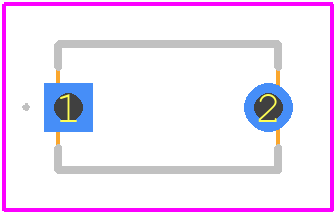

PCB Footprints
RDER73A682K2K1H03B - Murata Electronics PCB footprint - Other - Other - RDER73A682K2K1H03B
click to zoom
3D Models
RDER73A682K2K1H03B - Murata Electronics - 3D model - Other - RDER73A682K2K1H03B
click to zoom

RDER73A682K2K1H03B Details

  • Manufacturer Part Number:

    RDER73A682K2K1H03B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Capacitance:

    0.0068 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    4 mm

  • JESD-609 Code:

    e3

  • Length:

    5.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    null

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    1000 V

  • Size Code:

    2212

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    X7R

  • Temperature Coefficient:

    15% ppm/°C

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE

  • Width:

    3.15 mm

RDER73A682K2K1H03B Frequently Asked Questions (FAQs)

  • Murata recommends a land pattern with a pad size of 3.2mm x 1.6mm, with a non-solder mask defined (NSMD) pad shape, and a minimum clearance of 0.2mm between the pad and the solder mask.
  • The RDER73A682K2K1H03B is designed to handle high-frequency noise due to its low equivalent series resistance (ESR) and high self-resonant frequency (SRF). It is suitable for high-frequency applications up to 1 GHz.
  • Yes, the RDER73A682K2K1H03B is AEC-Q200 qualified, which means it meets the stringent requirements for automotive applications, including high reliability, high temperature, and vibration resistance.
  • The RDER73A682K2K1H03B has an operating temperature range of -55°C to +125°C, making it suitable for a wide range of applications, including automotive, industrial, and consumer electronics.
  • The RDER73A682K2K1H03B is designed to be moisture-resistant and has a high reliability in humid environments. It meets the requirements of JIS C 60068-2-78 (IEC 60068-2-78) for moisture resistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RDER73A682K2K1H03B Overview

Use the download button to access the RDER73A682K2K1H03B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RDER7, or try a keyword search, such as Ceramic Capacitors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
