XP Power recommends a PCB layout with a large copper area connected to the tab of the RDF2572S05 to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate to further improve thermal performance.
The RDF2572S05 meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. However, to ensure compliance with your specific safety requirements, you should consult with XP Power's technical support team to discuss your application and obtain any necessary certification documents or custom testing.
The maximum capacitance value for the input filter capacitor is not explicitly stated in the datasheet. However, XP Power recommends a maximum capacitance value of 47uF to ensure stable operation and prevent oscillations. It's essential to consult with XP Power's technical support team to determine the optimal capacitance value for your specific application.
The RDF2572S05 is designed to operate in a variety of environments, including those with high vibrations. However, it's essential to ensure that the module is properly secured to the PCB and that the PCB is designed to withstand the expected vibration levels. XP Power recommends following the IPC-9592 standard for PCB design and assembly in high-vibration environments.
XP Power provides a troubleshooting guide for the RDF2572S05, which includes steps to identify and resolve common issues, such as overvoltage or overcurrent protection. The guide is available upon request from XP Power's technical support team. Additionally, engineers can consult the datasheet and application notes for guidance on troubleshooting and fault diagnosis.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RDF2572S05 Overview

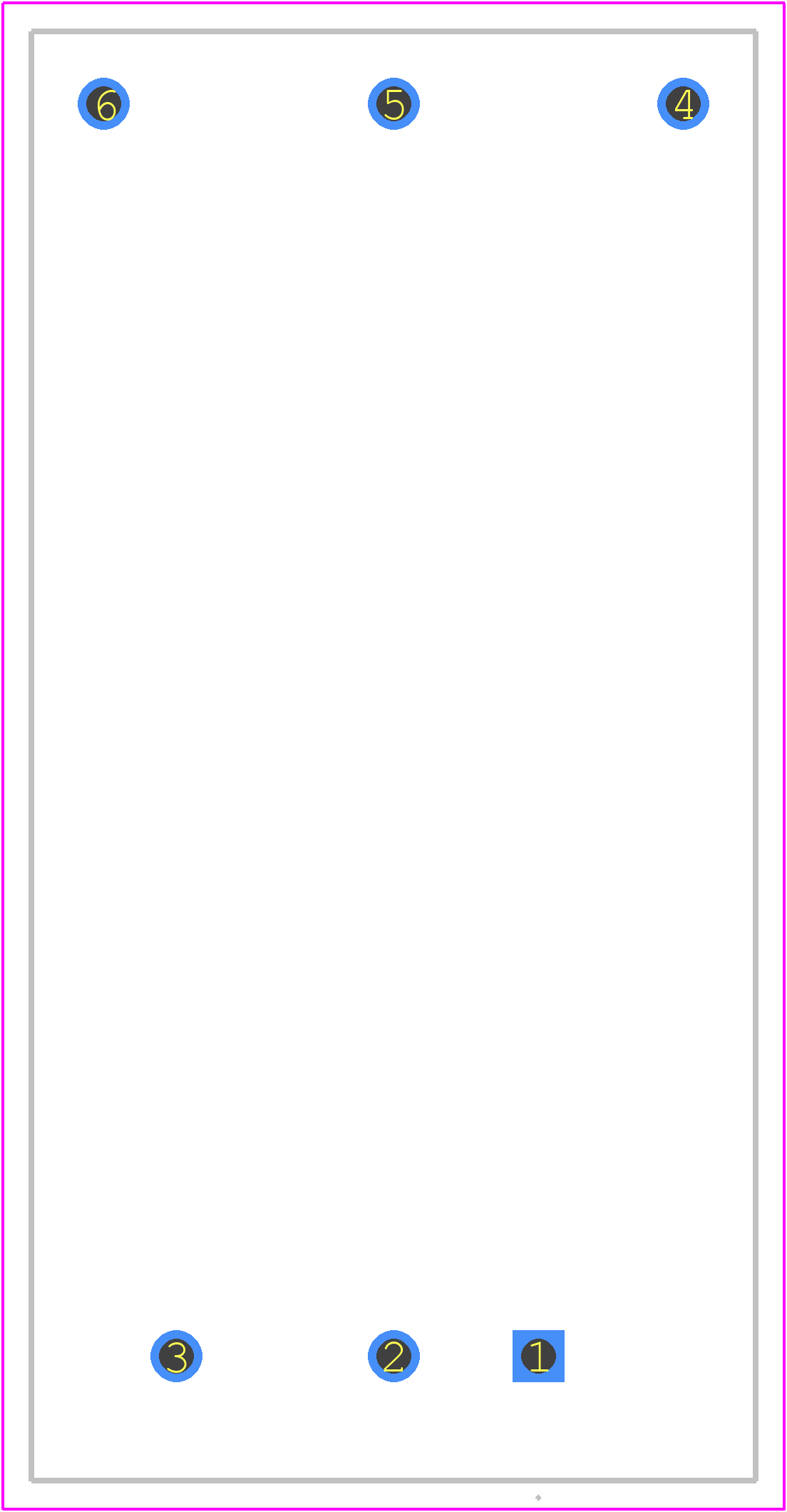

Use the download button to access the RDF2572S05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RDF25,
or try a keyword search, such as Power Supply Modules
