RDH30072WS12 - XP POWER

Description: XP Power RDH300 300W Isolated DC-DC Converter Through Hole, Vin 43 → 160 V dc, Vout 12V dc Railway Approved

Download RDH30072WS12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

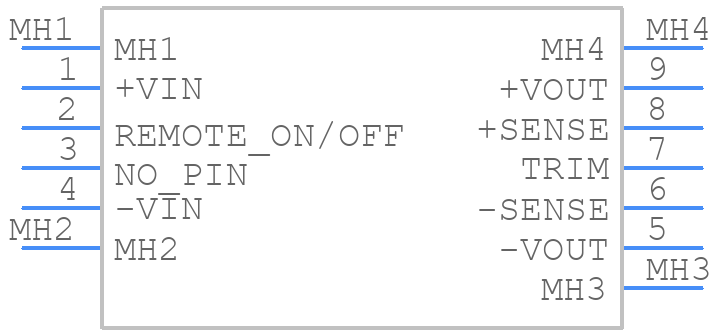

RDH30072WS12 - XP POWER - PCB symbol
click to zoom
PCB Footprints

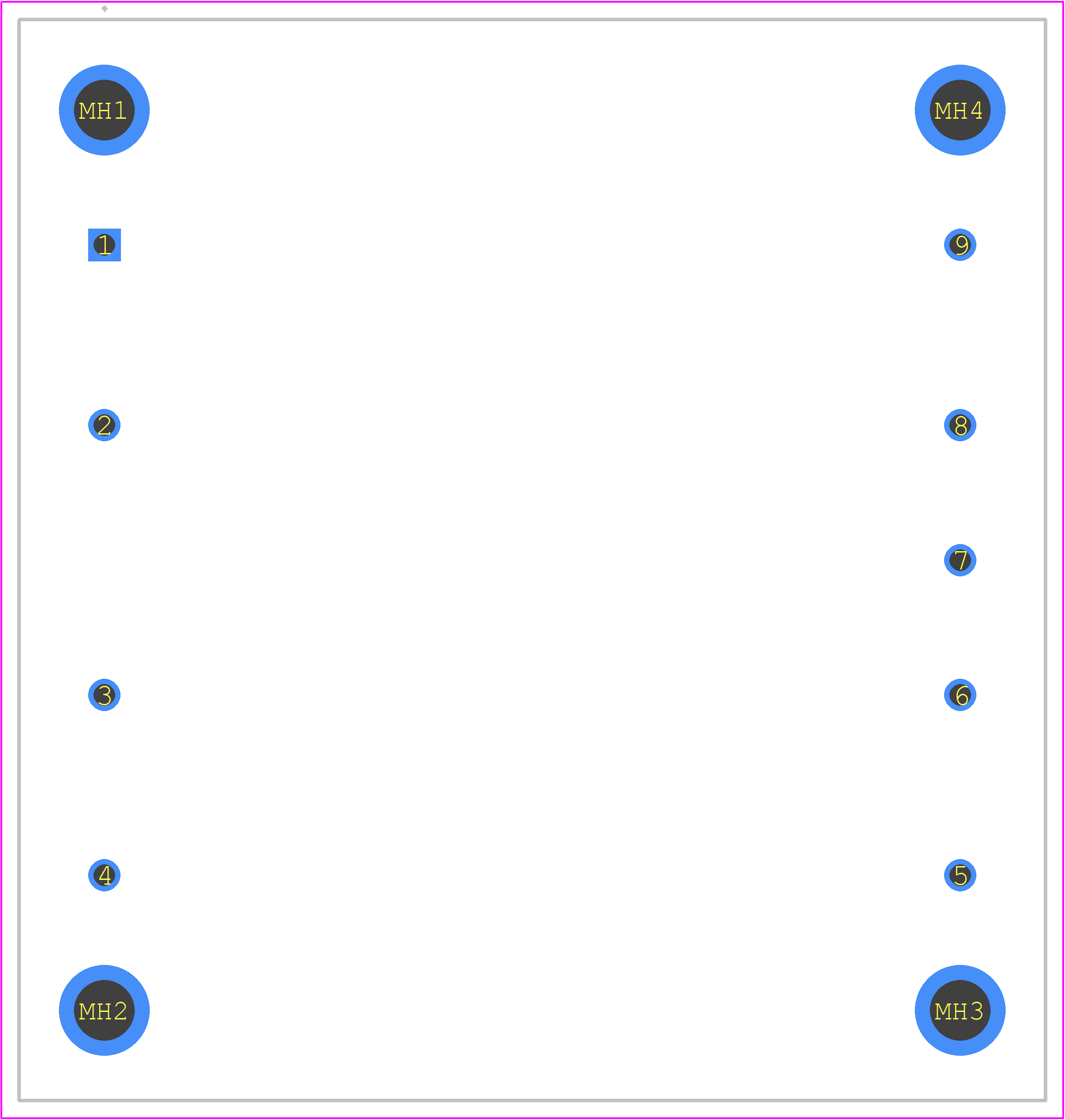

RDH30072WS12 - XP POWER PCB footprint - Other - Other - RDH30072WS12-2
click to zoom
3D Models
RDH30072WS12 - XP POWER - 3D model - Other - RDH30072WS12-2
click to zoom

RDH30072WS12 Details

  • Manufacturer Part Number:

    RDH30072WS12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • JESD-609 Code:

    e3

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

RDH30072WS12 Frequently Asked Questions (FAQs)

  • The RDH30072WS12 can operate up to 5,000 meters (16,400 feet) above sea level without derating.
  • Yes, the RDH30072WS12 is certified for use in Class I, Division 2 hazardous locations, making it suitable for use in industrial environments with explosive gases or vapors.
  • The maximum recommended cable length for the DC output cables is 3 meters (10 feet) to minimize voltage drop and ensure reliable operation.
  • Yes, the RDH30072WS12 can be paralleled with up to 5 units to achieve higher power output, but it requires a special parallel operation kit and careful system design to ensure reliable operation.
  • The MTBF rating for the RDH30072WS12 is approximately 550,000 hours at 25°C (77°F) ambient temperature, calculated according to MIL-HDBK-217F.
