Technical Content
Part Image

RDH30072WS24 - XP POWER

Description: XP Power RDH300 300W Isolated DC-DC Converter Through Hole, Vin 43 → 160 V dc, Vout 24V dc Railway Approved

Download RDH30072WS24 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

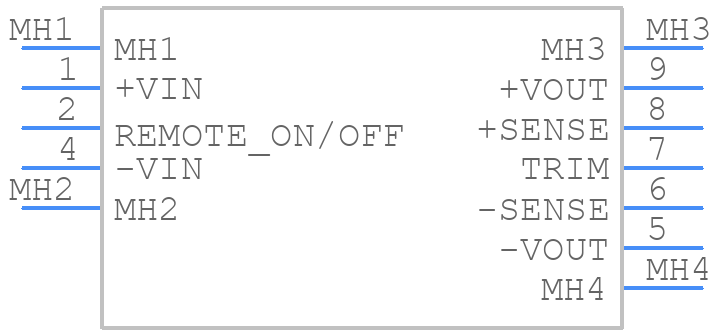

Symbol
RDH30072WS24 - XP POWER - PCB symbol
click to zoom

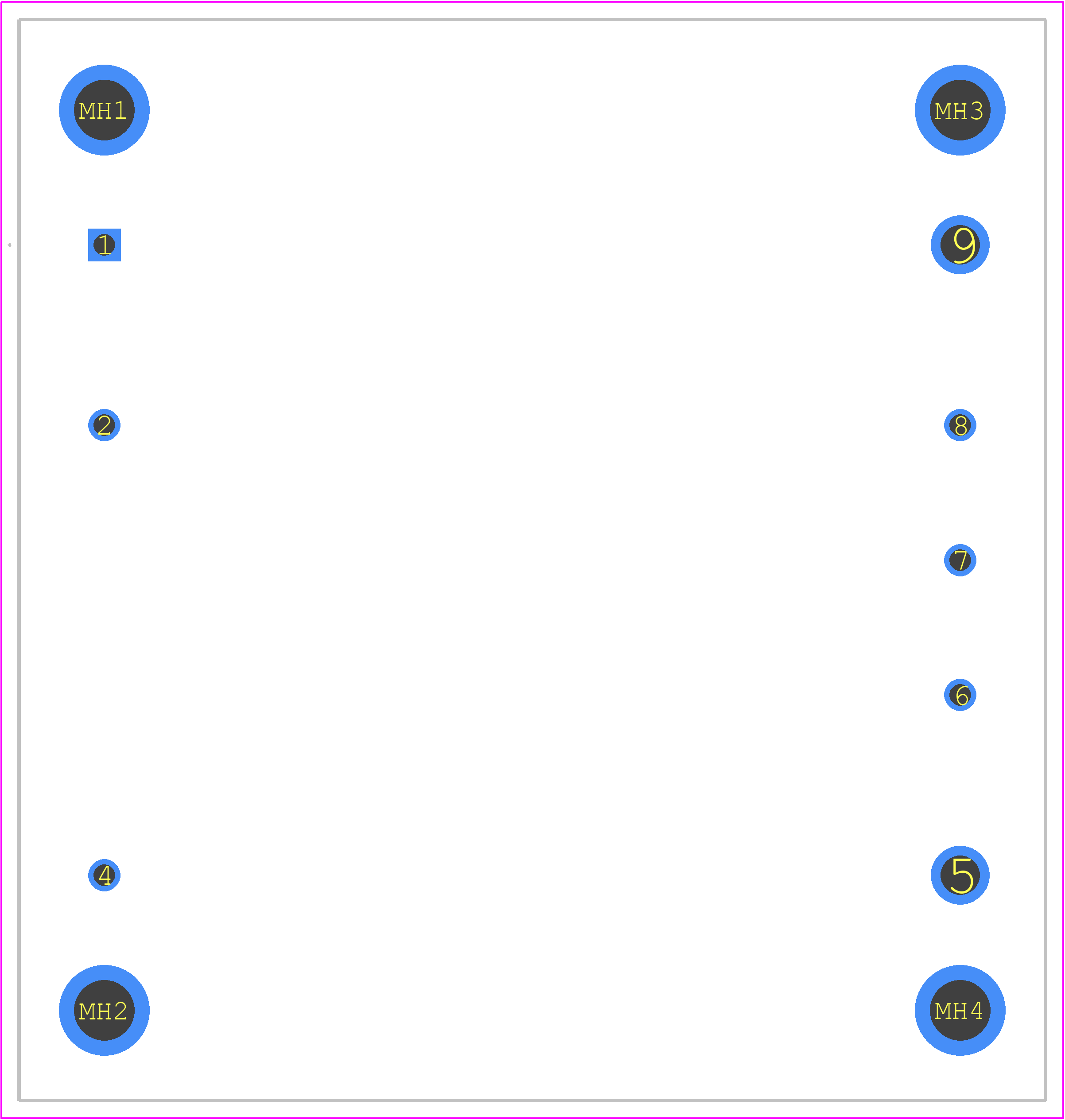

PCB Footprints
RDH30072WS24 - XP POWER PCB footprint - Other - Other - RDH30072WS24-3
click to zoom
3D Models
RDH30072WS24 - XP POWER - 3D model - Other - RDH30072WS24-3
click to zoom

RDH30072WS24 Details

  • Manufacturer Part Number:

    RDH30072WS24

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • JESD-609 Code:

    e3

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

RDH30072WS24 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the RDH30072WS24 is -40°C to +100°C, with derating above 80°C.
  • Yes, the RDH30072WS24 is designed to withstand high-vibration environments and meets the IEC 60068-2-6 vibration test standard.
  • The recommended input fuse rating for the RDH30072WS24 is 10A slow-blow type, but this may vary depending on the specific application and system requirements.
  • Yes, the RDH30072WS24 is designed to operate in humid environments and meets the IEC 60068-2-78 humidity test standard.
  • The MTBF rating for the RDH30072WS24 is approximately 1.5 million hours at 25°C, calculated according to MIL-HDBK-217F.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RDH30072WS24 Overview

Use the download button to access the RDH30072WS24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RDH30, or try a keyword search, such as Power Supply Modules
