RDH30072WS48 - XP POWER

Description: Isolated DC/DC Converters DC-DC CONV, 300W RAILWAY, HALF BRICK, 4:1 INPUT RANGE

Download RDH30072WS48 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

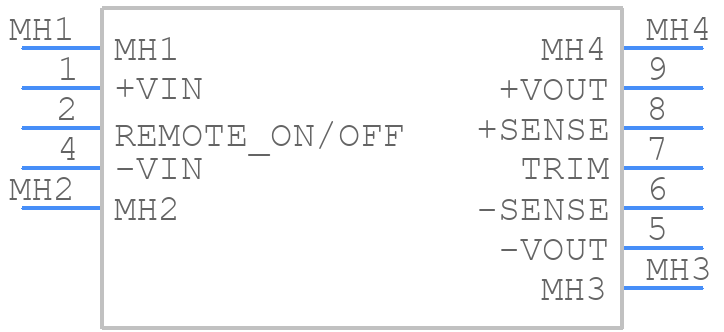

RDH30072WS48 - XP POWER - PCB symbol
click to zoom
PCB Footprints

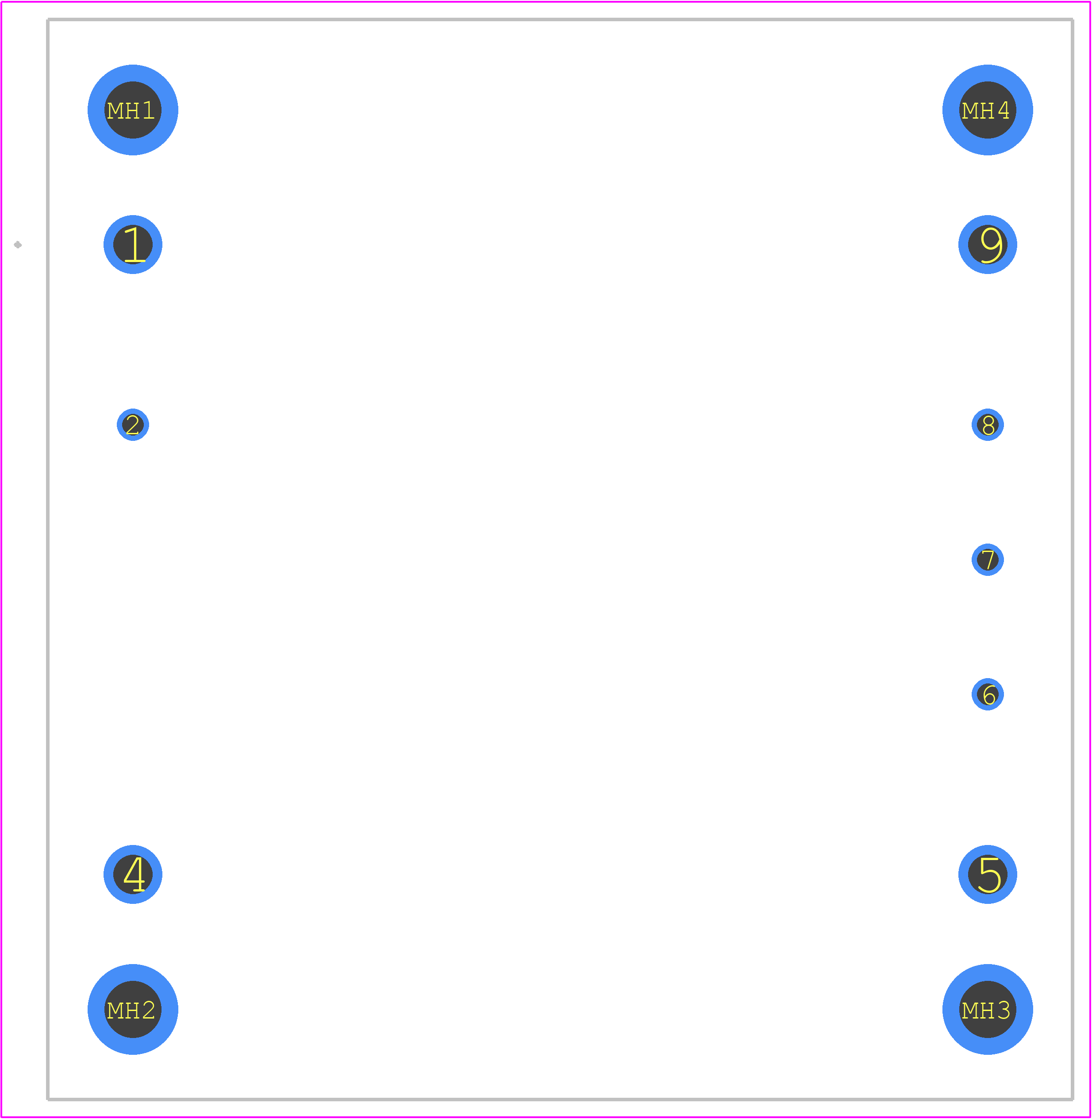

RDH30072WS48 - XP POWER PCB footprint - Other - Other - RDH30072WS48-2
click to zoom
3D Models
RDH30072WS48 - XP POWER - 3D model - Other - RDH30072WS48-2
click to zoom

RDH30072WS48 Details

  • Manufacturer Part Number:

    RDH30072WS48

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • JESD-609 Code:

    e3

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

RDH30072WS48 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the RDH30072WS48 is -40°C to +85°C, with derating above 60°C.
  • Yes, the RDH30072WS48 is designed to withstand high-vibration environments, with a vibration test specification of 10-2000 Hz, 2G peak acceleration.
  • The recommended input fuse rating for the RDH30072WS48 is 10A slow-blow type, but this may vary depending on the specific application and system requirements.
  • Yes, the RDH30072WS48 is compliant with UL60950-1, EN60950-1, and IEC60950-1 safety standards.
  • Yes, the RDH30072WS48 is designed to operate in humid environments, with a humidity rating of 95% RH non-condensing.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

RDH30072WS48 Overview

Use the download button to access the RDH30072WS48 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RDH30, or try a keyword search, such as Power Supply Modules
