RE46C112E8F - Microchip

Description: MICROCHIP - RE46C112E8F - IONIZATION SMOKE DETECTOR AFE, 8PDIP

Download RE46C112E8F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

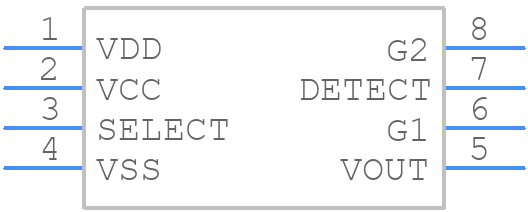

RE46C112E8F - Microchip - PCB symbol
click to zoom
PCB Footprints
RE46C112E8F - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - RE46C112E8F
click to zoom
3D Models
RE46C112E8F - Microchip - 3D model - Dual-In-Line Packages - RE46C112E8F
click to zoom

RE46C112E8F Details

  • Manufacturer Part Number:

    RE46C112E8F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    PDIP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Additional Feature:

    ALSO OPERATES FROM 6V TO 12V

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

RE46C112E8F Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the RE46C112E8F datasheet (section 5.1) and in the application note AN954. It's essential to follow these guidelines to minimize noise, ensure proper thermal management, and optimize performance.
  • The datasheet provides recommended values for external components in the 'Typical Application Circuit' section. Additionally, Microchip's application notes (e.g., AN954) and design guides (e.g., 'Designing with the RE46C112E8F') offer more detailed guidance on component selection.
  • The RE46C112E8F has an operating temperature range of -40°C to +125°C. However, it's essential to consider the specific application's requirements and ensure the device is operated within the recommended temperature range to maintain reliability and performance.
  • The RE46C112E8F's internal oscillator can be programmed using the device's configuration registers. Microchip provides detailed information on oscillator programming in the datasheet (section 3.3) and in the 'RE46C112E8F Programming Guide' application note.
  • The datasheet provides power-up and power-down sequencing guidelines in section 5.2. It's crucial to follow these guidelines to ensure proper device operation, prevent damage, and minimize power consumption.
