READ4656JSP#GC1 - Renesas Electronics

Description:  AEC-Q100 Compliant  Output full range (Rail-to-Rail output)  Absolute Maximum Ratings  Power Supply Voltage VDD = -0.1 to +36V  Operating Ambient Temperature Range TA= -40 to +125 ˚C  Electrical Characteristics  Power Supply Voltage VDD = +4.5V to +32V  Input Offset Voltage VIO ≤ ±9mV  Input Bias Current IB ≤ (1pA)  Supply current (per channel) IDD = 0.7 mA Typ., 1.0 mA Max. (@VDD=5.0V TA=-40˚C to +125˚C)  Slew Rate

Download READ4656JSP#GC1 Model

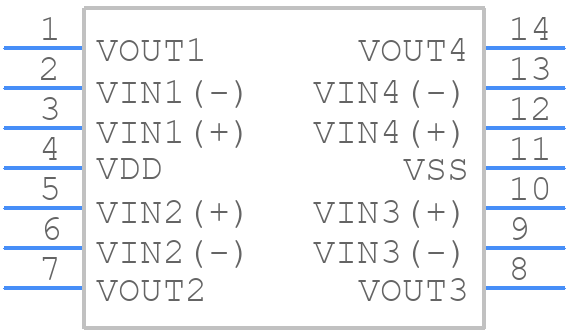

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
READ4656JSP#GC1 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PTSP0014JB-A
click to zoom
3D Models
READ4656JSP#GC1 - Renesas Electronics  - 3D model - Small Outline Packages - PTSP0014JB-A
click to zoom

READ4656JSP#GC1 Details

  • Manufacturer Part Number:

    READ4656JSP#GC1

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

READ4656JSP#GC1 Overview

Use the download button to access the READ4656JSP#GC1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like READ4, or try a keyword search, such as Operational Amplifiers
